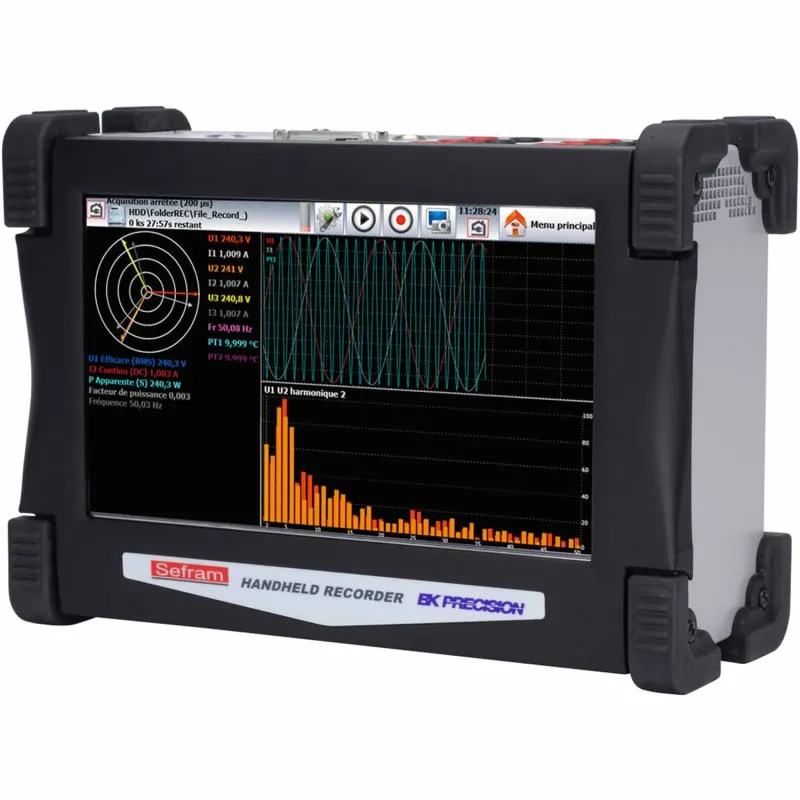

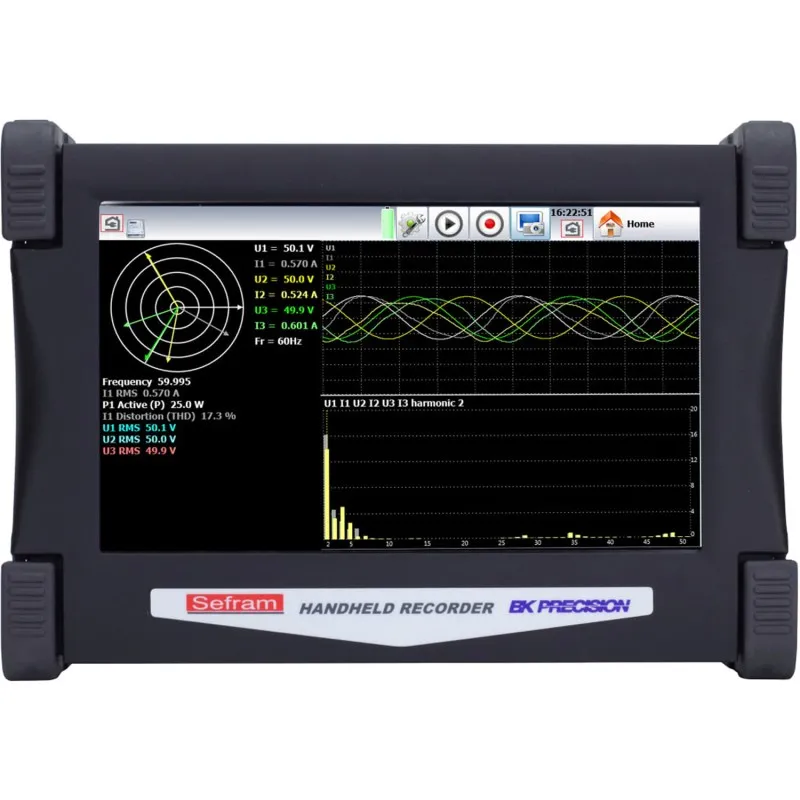

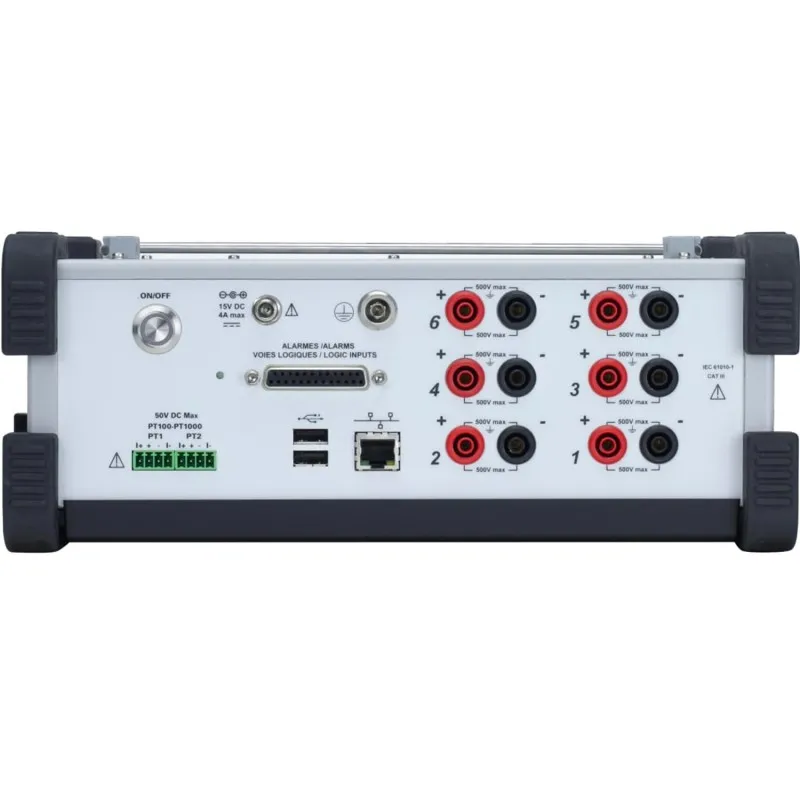

BK Precision DAS60 [DAS60-230V] 6-Channel High Speed Multi-Function Data Recorder, 230VAC Line Input

Name: BK Precision DAS60 [DAS60-230V] 6-Channel High Speed Multi-Function Data Recorder, 230VAC Line Input
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

BK Precision DAS60 [DAS60-230V] 6-Channel High Speed Multi-Function Data Recorder, 230VAC Line Input

0 reviews • Write a review

from

Rp.185,494,0320

Brand: BK Precision
Part Number: DAS60-230V
Availability: 4 - 6 WEEKS
Last Updated: 15 Nov 2024

BK Precision

Qty

Add to Cart

Add to Wish List Compare this Product

Description

The BK Precision DAS60 6 Channel High Speed Multi-Function Data Recorder, 2 Pt100/PT1000 Inputs is a rugged, compact data acquisition solution featuring CAT III 600V isolated inputs enabling safe and reliable measurements, and is ideal for measuring a wide range of signals from small sensors to large electrical systems. The DAS 60 features 6 analog channels, which can be configured to record voltage, current, and temperature. Another standard feature is an alarm output/logic input which enables pulse and frequency measurements. The acquisition system features 14 bit resolution and versatile channel configurability with a maximum sample rate of 1 Million samples per second, 100 kHz bandwidth for capturing abnormal or transient waveforms, a wide signal measurement range from +/- 5 mV to +/- 500 V, internal 64GB solid state memory, and 9.5 hours of battery life. The user interface features a 10-inch next generation color touch screen which allows users to easily scroll through recorded data, zoom in on small signals, drag and drop delta cursors to make precision measurements, and view on screen values. Measurement data can be saved to the internal solid state memory or to an external device such as a USB memory stick. The units also include two USB Host ports and a LAN interface that allow users to remotely control and configure the recorder with the free DasLab software. This model includes 2 factory-installed Pt100/Pt1000 Inputs.
