BK Precision DAS30 Series 2-Channel High Speed Multi-Function Recorder

BK Precision DAS30 Series 2-Channel High Speed Multi-Function Recorder
BK Precision DAS30 Series 2-Channel High Speed Multi-Function Recorder
BK Precision DAS30 Series 2-Channel High Speed Multi-Function Recorder
BK Precision DAS30 Series 2-Channel High Speed Multi-Function Recorder
BK Precision DAS30 Series 2-Channel High Speed Multi-Function Recorder
BK Precision DAS30 Series 2-Channel High Speed Multi-Function Recorder
BK Precision DAS30 Series 2-Channel High Speed Multi-Function Recorder
from
Rp.95,621,1290
Ex Tax: Rp.95,621,1290
  • Brand: BK Precision
  • Part Number: DAS30
  • Availability: 4 - 6 WEEKS
  • Last Updated: 15 Nov 2024
 Configure Options

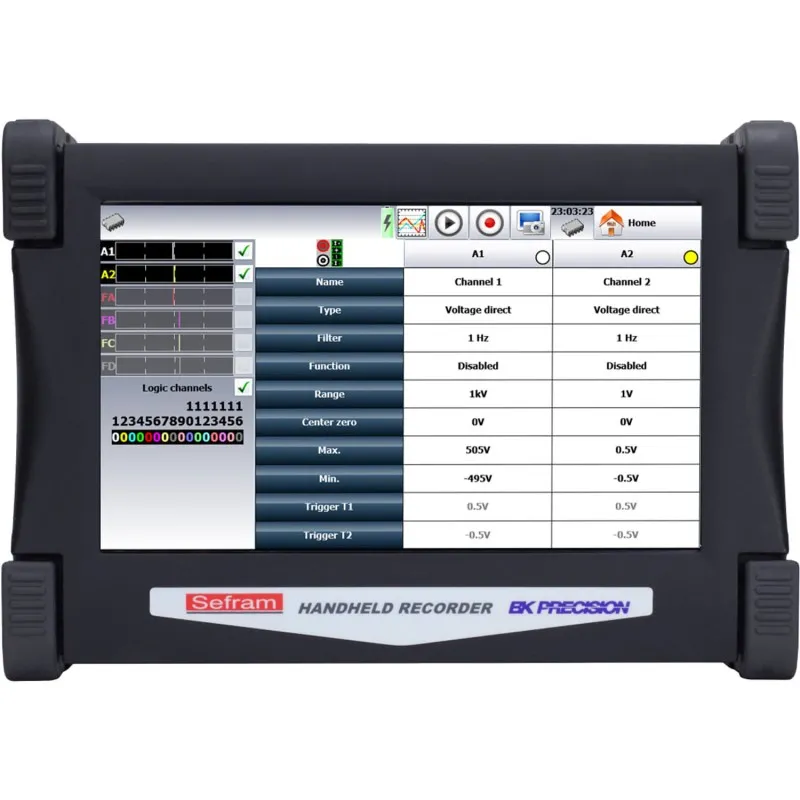

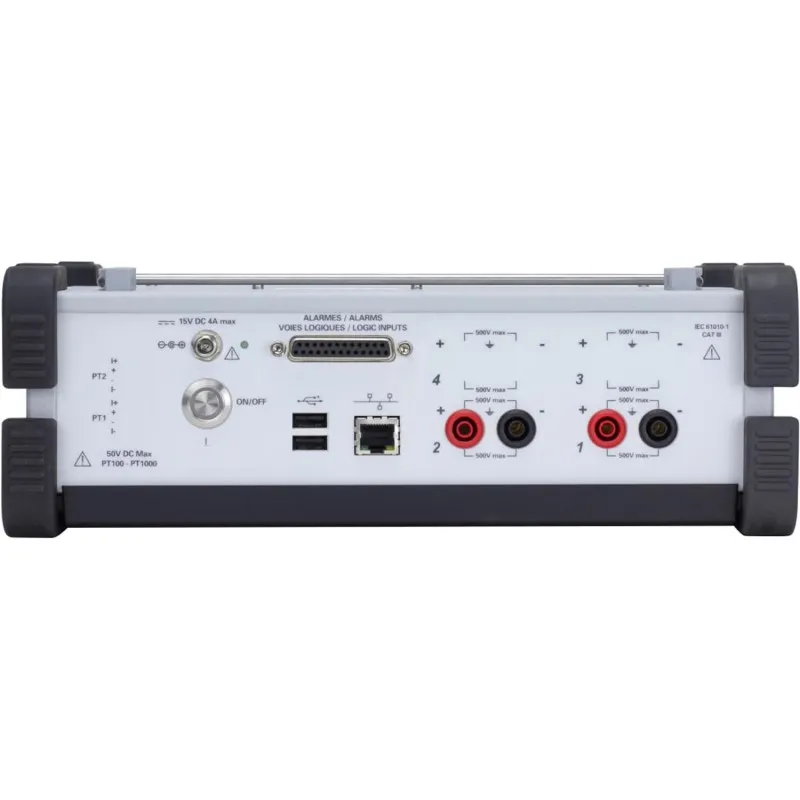

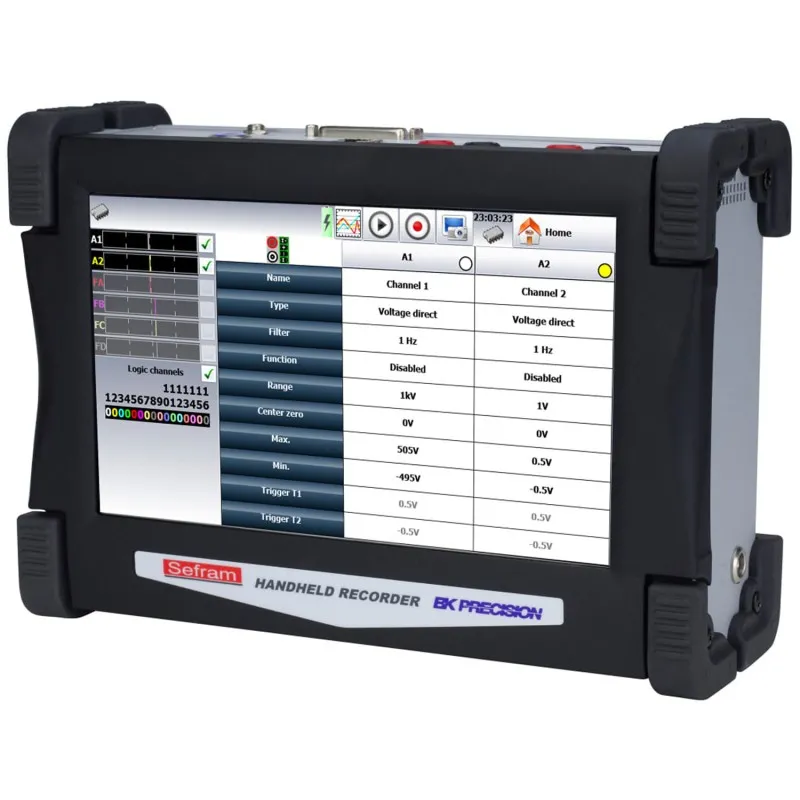

The DAS 30/50/60 series of high speedmulti-function data acquisition recorders featureuniversal inputs, high speed sampling (1 MSa/s),a wide input range (±1 mv to ±500 V), largeinternal solid-state memory (up to 64 GB), andup to 9.5 hours of battery life. These portable andrugged data acquisition systems also provide CATIII 600V isolated input channels, 16 digital inputs,alarm outputs, and a dedicated power analysismode for analyzing single or 3-phase electricalnetworks.Each channel can acquire a different signal suchas voltage, temperature (thermocouple), currentor frequency simultaneously using a common timebase. Additionally, two dedicated RTD inputs areavailable as a factory option or standard on theDAS60.The 10-inch touchscreen makes it easy toconfigure channels, scroll through acquireddata, zoom in and out, and position cursors forprecise measurements. Remote control ortransferring of recorded data is convenient usingthe built-in Ethernet and USB interfaces. Allmodels are available with a printer option.

  Options 0 Item Selected
Model
Product Name
Price
Available
Quantity
BK Precision DAS-30 [DAS30-230V] 2-Channel High Speed Multi-Function Data Recorder, 230VAC Line Input
DAS30-230V
Rp.95,621,1290
4 - 6 WEEKS
BK Precision DAS30P [DAS30P-230V] 2-Channel High Speed Multi-Function Data Recorder with 110mm Thermal Printer, 230VAC Line Input
DAS30P-230V
Rp.121,225,9680
4 - 6 WEEKS
BK Precision DAS30T [DAS30T-230V] 2-Channel High Speed Multi-Function Data Recorder with 2 PT100/PT1000 Inputs, 230VAC Line Input
DAS30T-230V
Rp.108,423,5480
4 - 6 WEEKS
BK Precision DAS30PT [DAS30PT-230V] 2-Channel High Speed Multi-Function Data Recorder with 110mm Thermal Printer and 2 PT100/PT1000 Inputs, 230VAC Line Input
DAS30PT-230V
Rp.134,028,3870
4 - 6 WEEKS
