BK Precision BA6010 Series Battery Analyzer

Name: BK Precision BA6010 Series Battery Analyzer
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

BK Precision BA6010 Series Battery Analyzer

0 reviews • Write a review

from

Rp.45,947,9030

Ex Tax: Rp.45,947,9030

Brand: BK Precision
Part Number: BA60
Availability: 4 - 6 WEEKS
Last Updated: 17 Nov 2024

BK Precision

Qty

Add to Cart

Add to Wish List Compare this Product

Configure Options

Tags: Additel , Digital , Pressure , Calibrators

Description

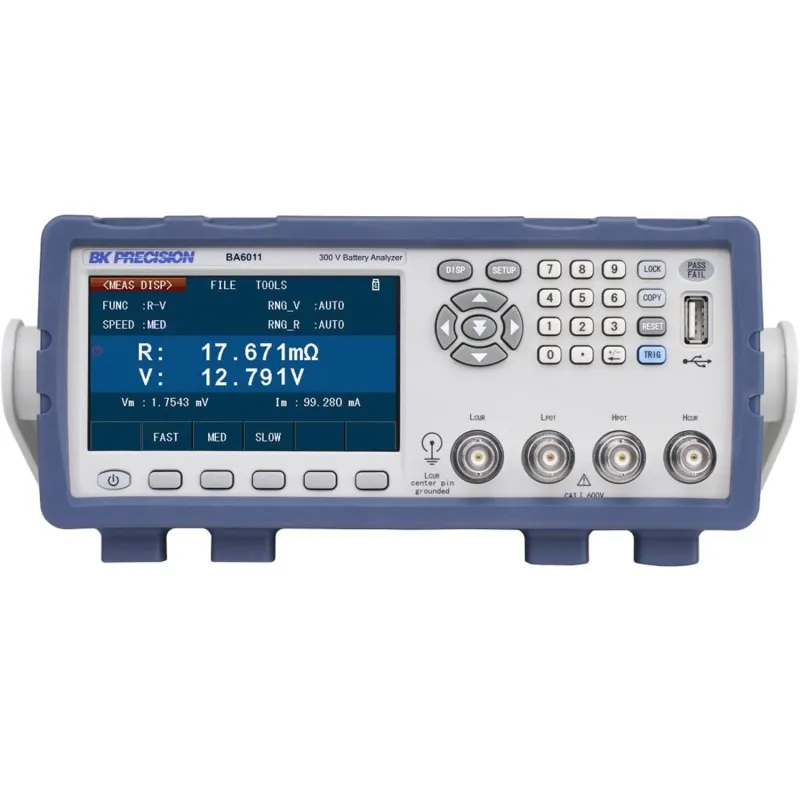

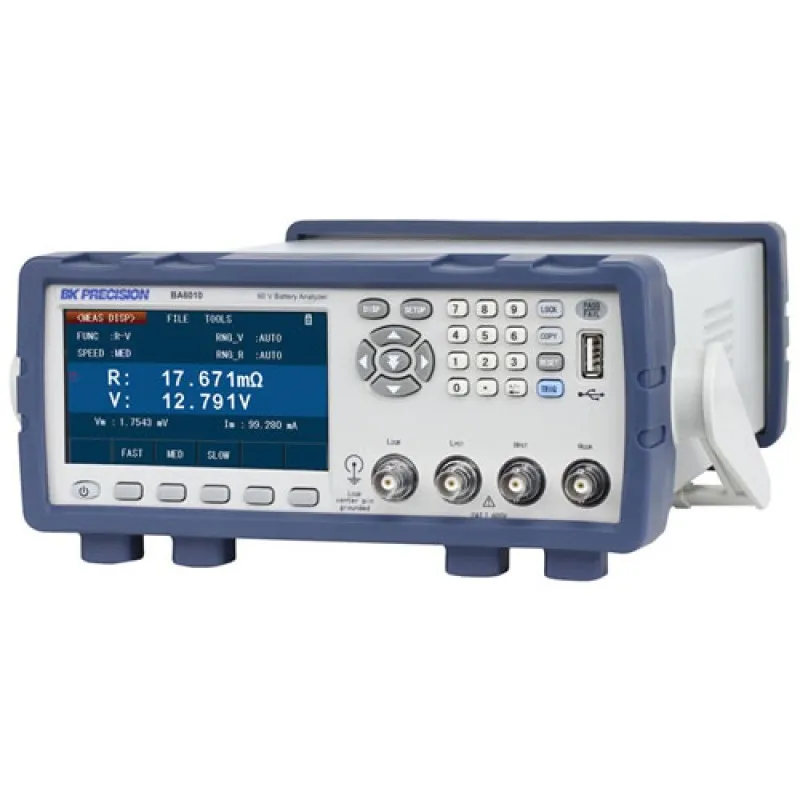

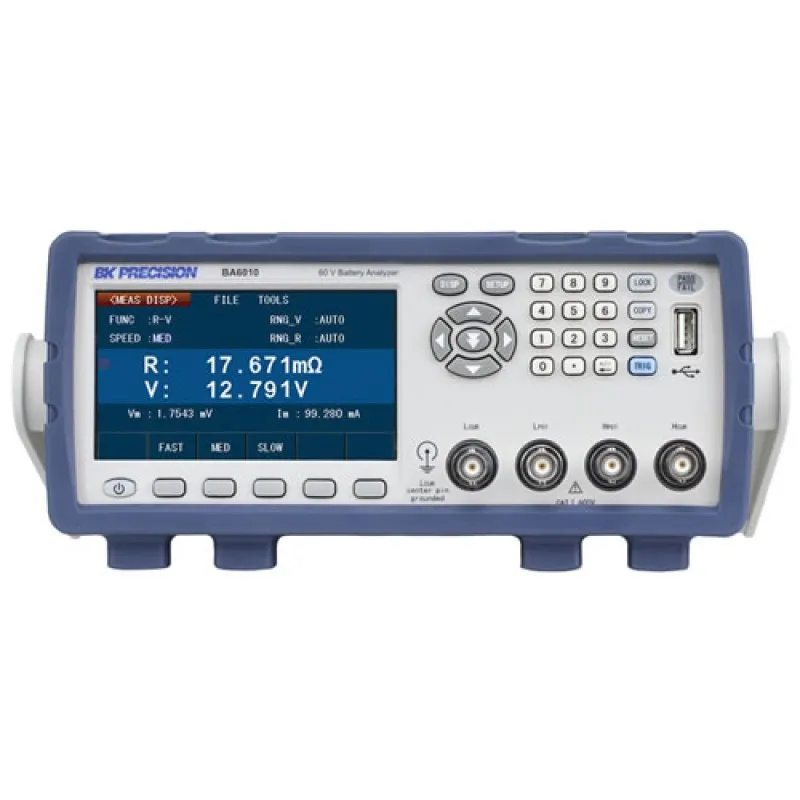

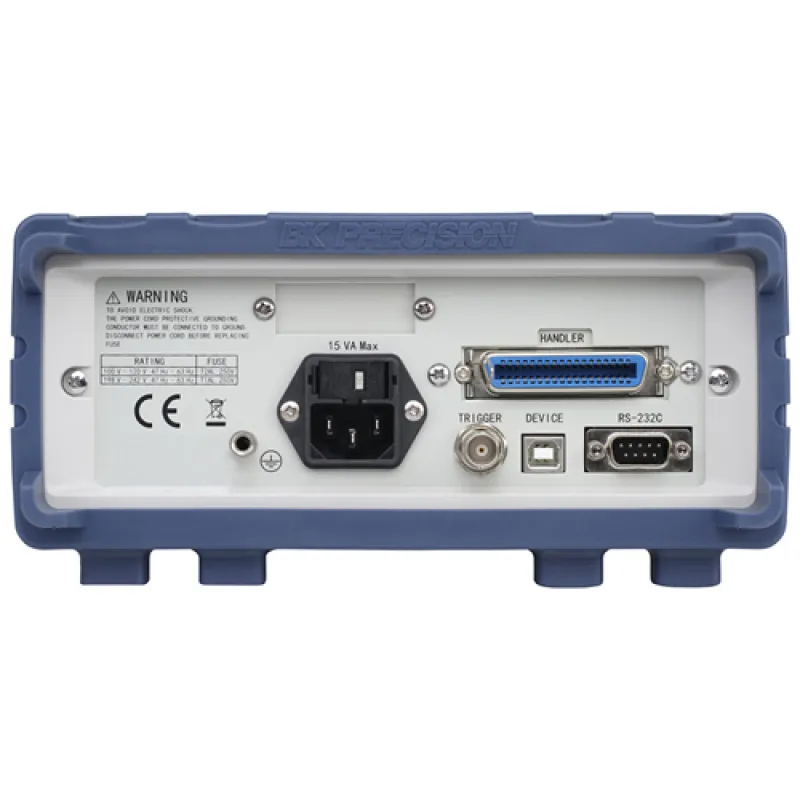

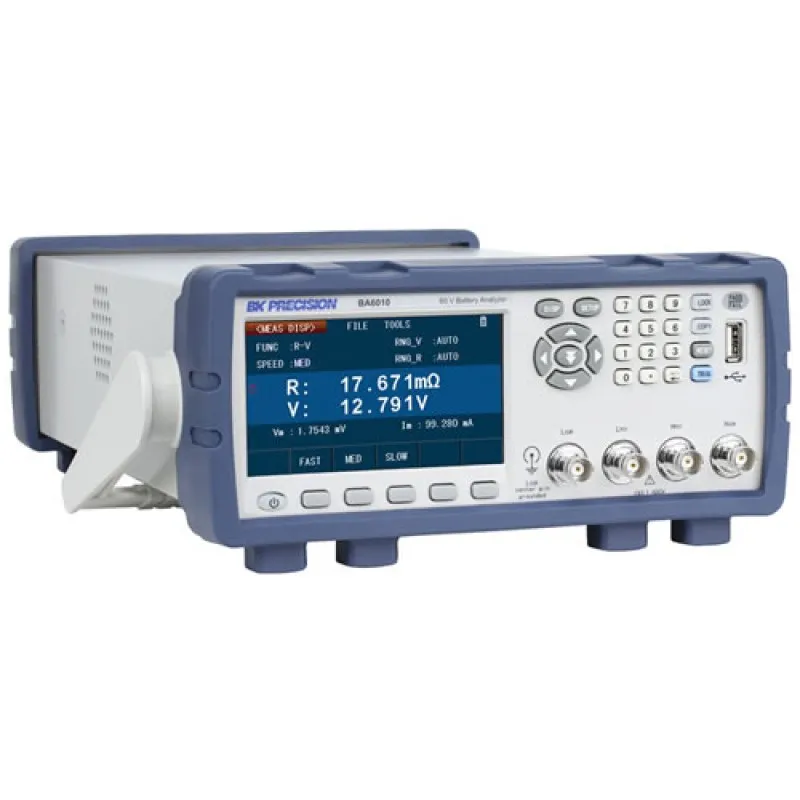

The BA6010 Series battery analyzers measure voltage and resistance of modern battery technologies with high accuracy, resolution, and speed. Additionally, these instruments provide auxiliary measurement parameters inductance, dissipation factor, impedance, quality factor, reactance, phase angle in degrees, and capacitance in farads. The BA6010 Series is suitable for characterizing battery chemistries that are responsive to a 1 kHz AC stimulus signal, including lead acid, lithium and alkaline type batteries used in consumer products, electric vehicles, power backup, security, and fire alarm systems. Model BA6011 supports voltage measurements of battery packs up to 300 V whereas the BA6010 features a 6 V measurement range ideal for battery cell testing. The handler and remote interfaces expands the analyzer’s application to R&D and automated manufacturing environments.

Wide Range of Measurements:
Two user-selected measurements can be displayed simultaneously, along with stimulus signals Vm and Im. Unlike comparable battery testers that only support voltage and resistance measurements, users can also characterize additional parameters such as battery capacitance thus providing additional insight into a battery’s condition.
