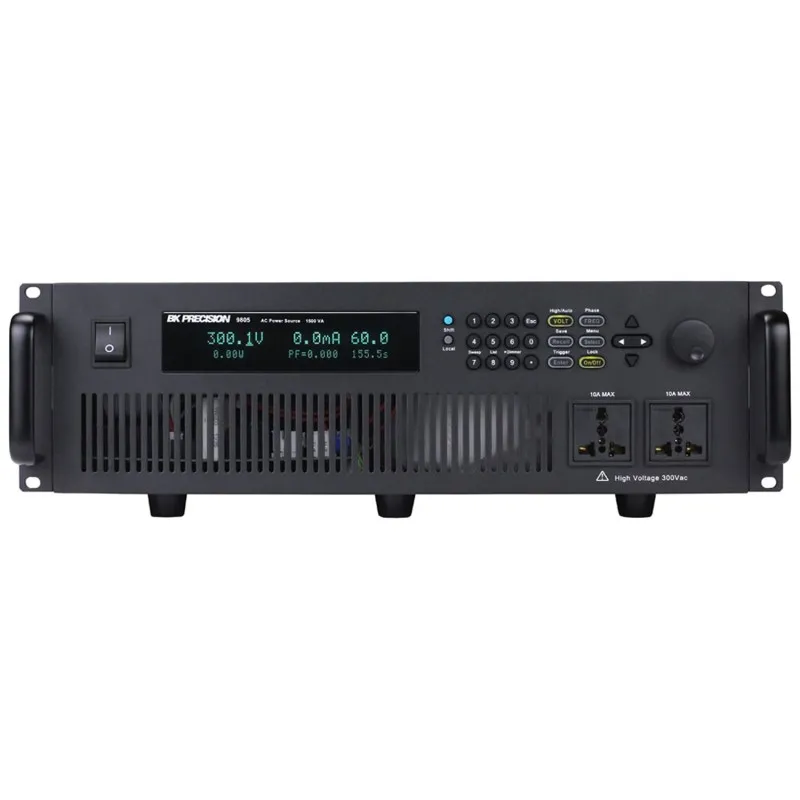

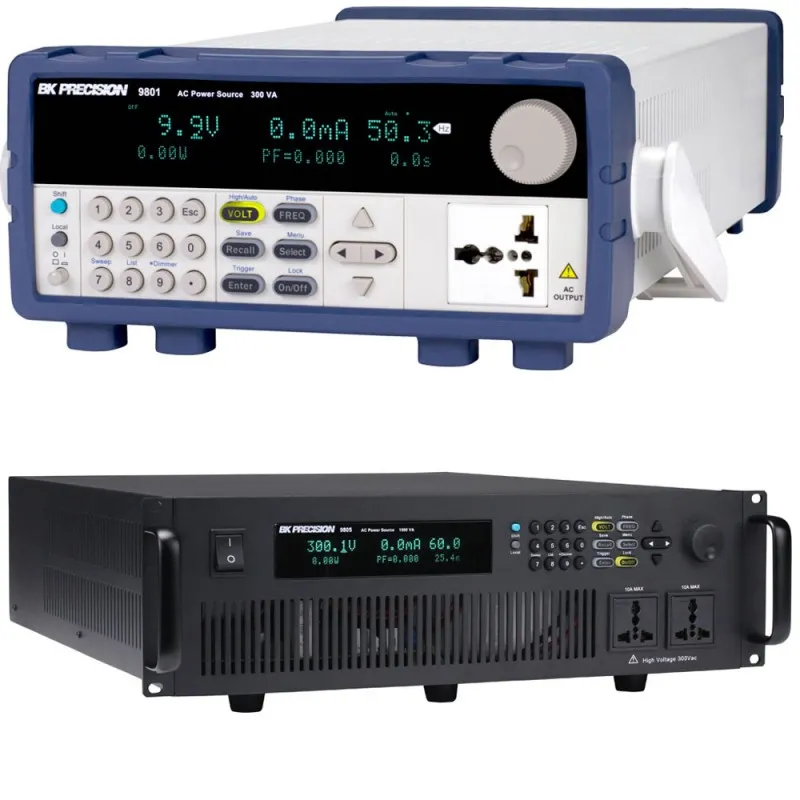

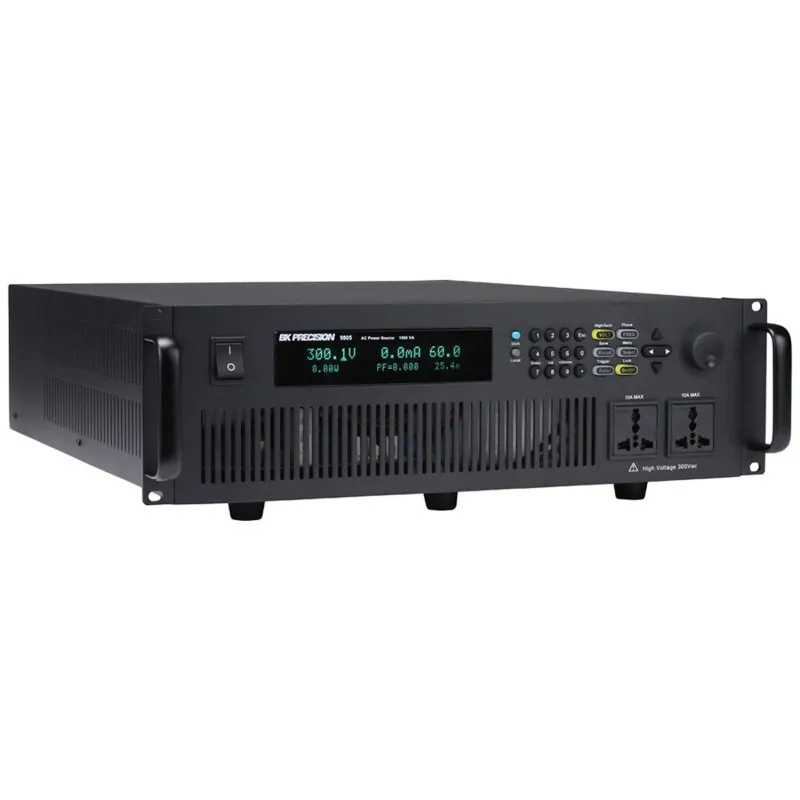

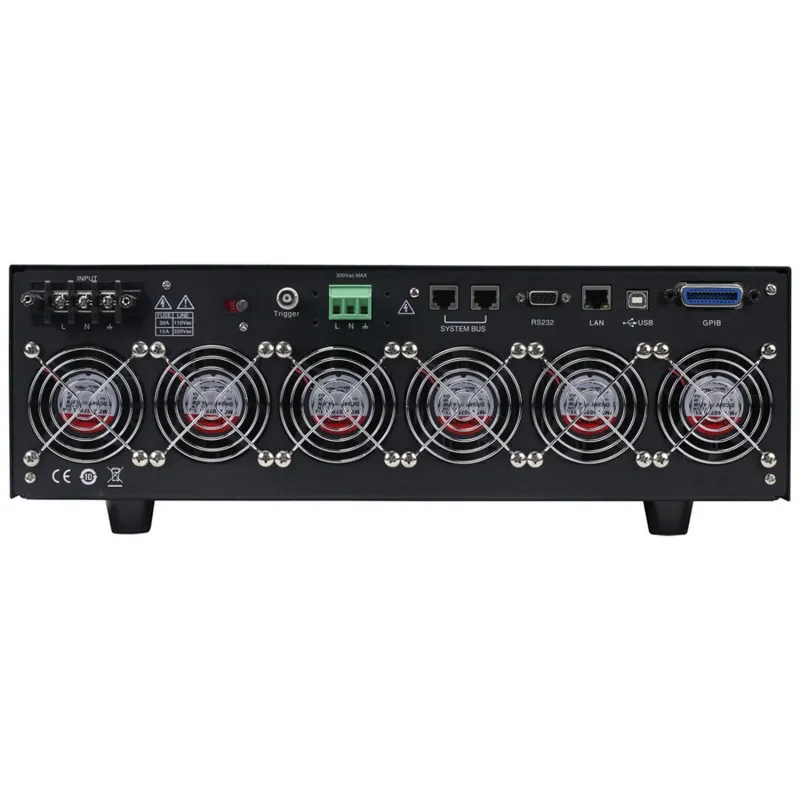

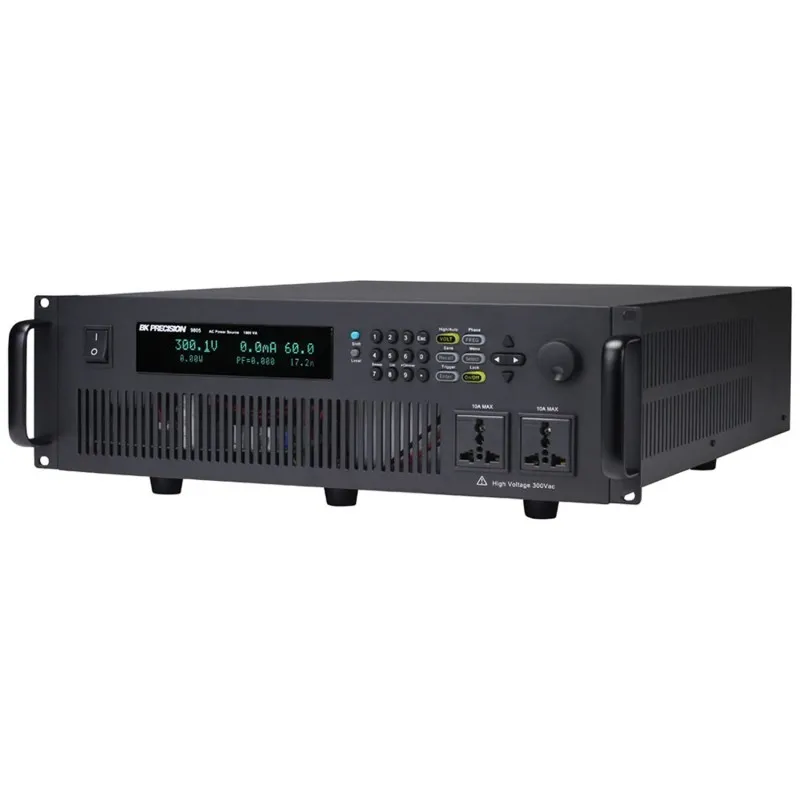

BK Precision 9800 SERIES Programmable AC Power Sources

BK Precision 9800 SERIES Programmable AC Power Sources
BK Precision 9800 SERIES Programmable AC Power Sources
BK Precision 9800 SERIES Programmable AC Power Sources
BK Precision 9800 SERIES Programmable AC Power Sources
BK Precision 9800 SERIES Programmable AC Power Sources
BK Precision 9800 SERIES Programmable AC Power Sources
BK Precision 9800 SERIES Programmable AC Power Sources
BK Precision 9800 SERIES Programmable AC Power Sources
BK Precision 9800 SERIES Programmable AC Power Sources
BK Precision 9800 SERIES Programmable AC Power Sources
BK Precision 9800 SERIES Programmable AC Power Sources
BK Precision 9800 SERIES Programmable AC Power Sources
BK Precision 9800 SERIES Programmable AC Power Sources
BK Precision 9800 SERIES Programmable AC Power Sources
BK Precision 9800 SERIES Programmable AC Power Sources
BK Precision 9800 SERIES Programmable AC Power Sources
BK Precision 9800 SERIES Programmable AC Power Sources
0 reviews • Write a review
from
Rp.72,291,9350
  • Brand: BK Precision
  • Part Number: 980
  • Availability: 4 - 6 WEEKS
  • Last Updated: 02 Nov 2024
BK Precision BK Precision
Add to Cart
Add to Wish List Compare this Product
 Configure Options
Tags: BK Precision , 9832 , Programmable , AC , Power , Source

The 9800/B Series is both a programmableAC source and measurement tool. These fullyprogrammable linear AC sources deliver amaximum of 1500 VA through the universal lineoutput terminals on the front and the outputconnector on the rear. The output can be variedfrom 0 to 300 V with 0.1 V programmingresolution. The output frequency can also beadjusted from 45 Hz to 500 Hz with start andstop phase angle from 0 to 360 degrees. Thebright VFD display shows Vrms, Irms, Ipeak,frequency, power factor (PF), apparent power,true power, and elapsed output time.These AC sources provide a power linedisturbance (PLD) simulator, list mode, andsweep mode for simulation of common powergrid faults and disturbances. A built-in dimmerfunction is also available for testing motors andLEDs.List mode can be used to generate sequences ofwaveforms such as surges, sags, and frequencydisturbances. The programmed list can betriggered from the front panel or via BNCconnector on the rear.Standard USB, RS232, and LAN interfaces canbe used to remotely control the source via a PC.GPIB is available as an option for select models.Free application software and LabVIEWTM driverare available to reduce programming time andincrease productivity.Common applications: The 9800/B Series AC power sources aresuitable for evaluating transformers, TRIACs,SCRs and passive components as well asproduction, R&D, service, and pre-compliancetesting.

  Options 0 Item Selected
Model
Product Name
Price
Available
Quantity
BK Precision 9801 [9801-220V] Programmable AC Power Source, 300V/3A, 300 VA Max Power, 220VAC Line Input
9801-220V
Rp.72,291,9350
4 - 6 WEEKS
BK Precision 9803 [9803-220V] Programmable AC Power Source, 300V/6A, 300 VA, 220VAC Line Input
9803-220V
Rp.114,404,0320
4 - 6 WEEKS
BK Precision 9803B [9803B-220V] Programmable AC Power Source, 300V/6A, 750 VA, 220VAC Line Input, USB, RS-2312
9803B-220V
Rp.108,771,9350
4 - 6 WEEKS
BK Precision 9805 [9805-220V] Programmable AC Power Source, 300V/12A, 1500 VA, 220VAC Line Input
9805-220V
Rp.174,691,9350
4 - 6 WEEKS
BK Precision 9805B [9805B-220V] Programmable AC Power Source, 300V/12A, 1500 VA, 220VAC Line Input, USB, RS-2312
9805B-220V
Rp.169,060,0000
4 - 6 WEEKS
