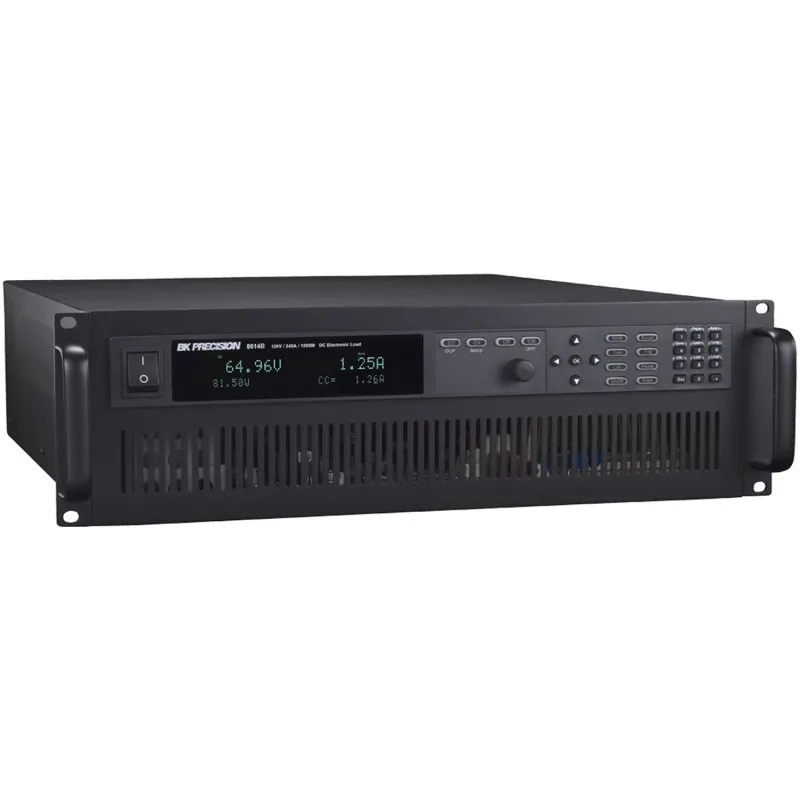

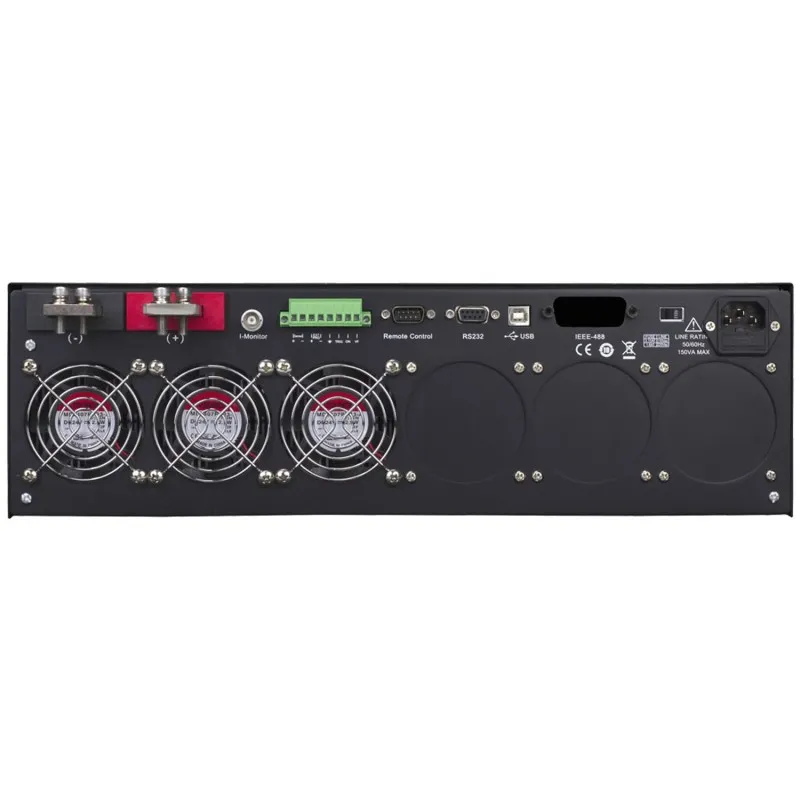

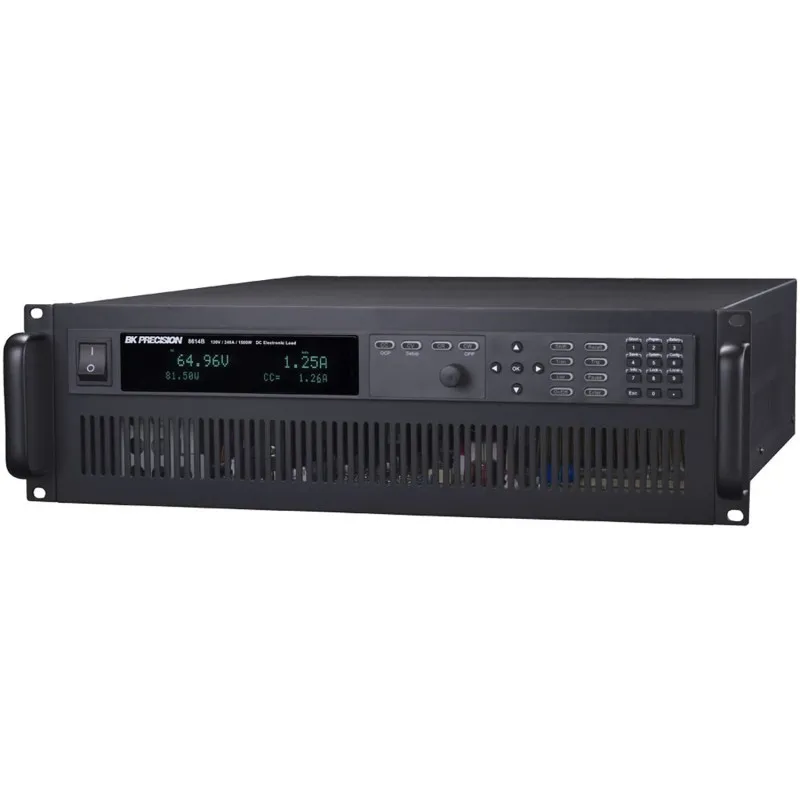

BK Precision 8614B [8614B-220V] 120V/240A/1500W Programmable DC Electronic Load, USB and RS-232 Interfaces, 220V Line Input

Name: BK Precision 8614B [8614B-220V] 120V/240A/1500W Programmable DC Electronic Load, USB and RS-232 Interfaces, 220V Line Input
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

BK Precision 8614B [8614B-220V] 120V/240A/1500W Programmable DC Electronic Load, USB and RS-232 Interfaces, 220V Line Input

0 reviews • Write a review

from

Rp.121,545,965

Brand: BK Precision
Part Number: 8614B-220V
Availability: 4 - 6 WEEKS
Last Updated: 10 Nov 2024

BK Precision

Qty

Add to Cart

Add to Wish List Compare this Product

Tags: Additel , Digital , Pressure , Calibrators

Description

BK Precision 8614B220V 120V/240A/1500W Programmable DC Electronic Load, USB and RS-232 Interfaces, 220V Line Input provides the performance of modular system DC electronic loads in a compact benchtop form factor. With fast transient operation speeds up to 25 kHz and high 16-bit measurement resolution and accuracy, the 8614-220V DC load can be used for testing and evaluating a variety of DC sources such as DC power supplies, DC-DC converters, batteries, battery chargers, and photovoltaic arrays. The 8614-220V can operate in constant voltage (CV), constant current (CC), constant resistance (CR), and constant power (CW) mode and be configured to provide a dynamically changing load to the DC source with fast loading switching times. Versatile internal, external, and remote triggering options allow the dynamic load behavior to be synchronized with other events. Increase productivity by saving your test parameters into any one of the 100 memory areas for quick system recall. All load parameters such as voltage, current, slew rate, and width can be set via the front panel or programmed remotely. The 8614-220V electronic load provides flexible triggering capabilities, analog current control and monitoring, and standard USB (USBTMC-compliant), GPIB, or RS-232 serial interfaces for remote communication.
