BK Precision 5335B [5335B] Single-Phase AC/DC Power Meter with USB, GPIB, RS232 and LAN interfaces

BK Precision 5335B [5335B] Single-Phase AC/DC Power Meter with USB, GPIB, RS232 and LAN interfaces
BK Precision 5335B [5335B] Single-Phase AC/DC Power Meter with USB, GPIB, RS232 and LAN interfaces
BK Precision 5335B [5335B] Single-Phase AC/DC Power Meter with USB, GPIB, RS232 and LAN interfaces
BK Precision 5335B [5335B] Single-Phase AC/DC Power Meter with USB, GPIB, RS232 and LAN interfaces
BK Precision 5335B [5335B] Single-Phase AC/DC Power Meter with USB, GPIB, RS232 and LAN interfaces
BK Precision 5335B [5335B] Single-Phase AC/DC Power Meter with USB, GPIB, RS232 and LAN interfaces
BK Precision 5335B [5335B] Single-Phase AC/DC Power Meter with USB, GPIB, RS232 and LAN interfaces
BK Precision 5335B [5335B] Single-Phase AC/DC Power Meter with USB, GPIB, RS232 and LAN interfaces
BK Precision 5335B [5335B] Single-Phase AC/DC Power Meter with USB, GPIB, RS232 and LAN interfaces
from
Rp.23,500,000
Ex Tax: Rp.23,500,000
  • Brand: Extech Instruments
  • Part Number: 5335B
  • Availability: 4 - 6 WEEKS
  • Last Updated: 26 Mar 2024
Extech Instruments Extech Instruments
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

The BK Precision 5335B Single-Phase AC/DC Power Meter is for measuring and analyzing power consumption and power quality parameters quickly and accurately. It supports power measurements up to 600 Vrms and 20 Arms, with a bandwidth up to of 100 kHz. The 5335B measures all AC and DC parameters, including power, current, voltage, power factor, frequency, and phase. Additionally, this meter features a powerful integration function, the ability to perform harmonic measurements to the 50th order, and an oscilloscope mode.

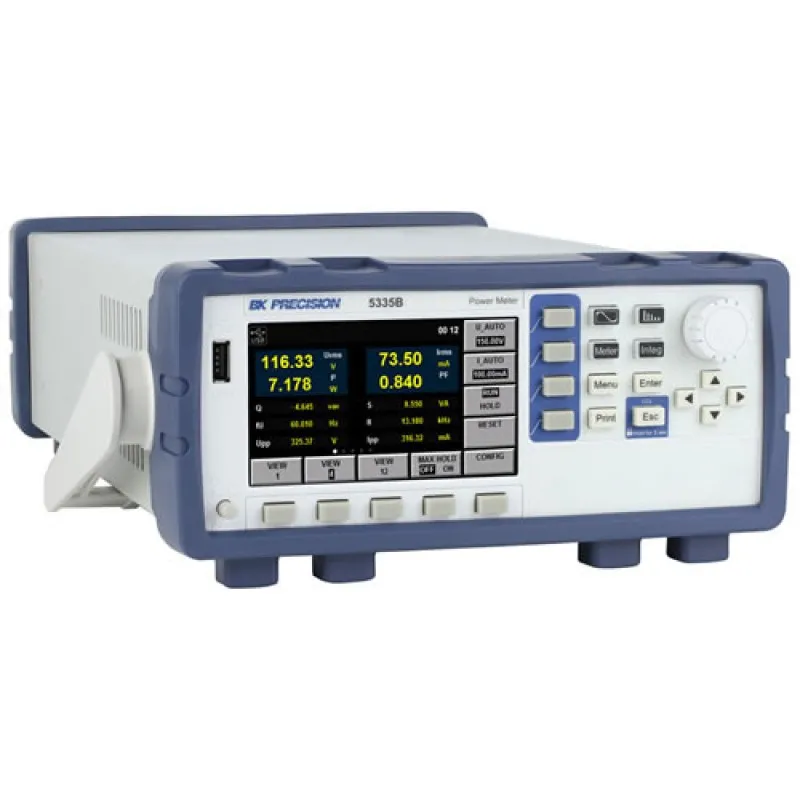

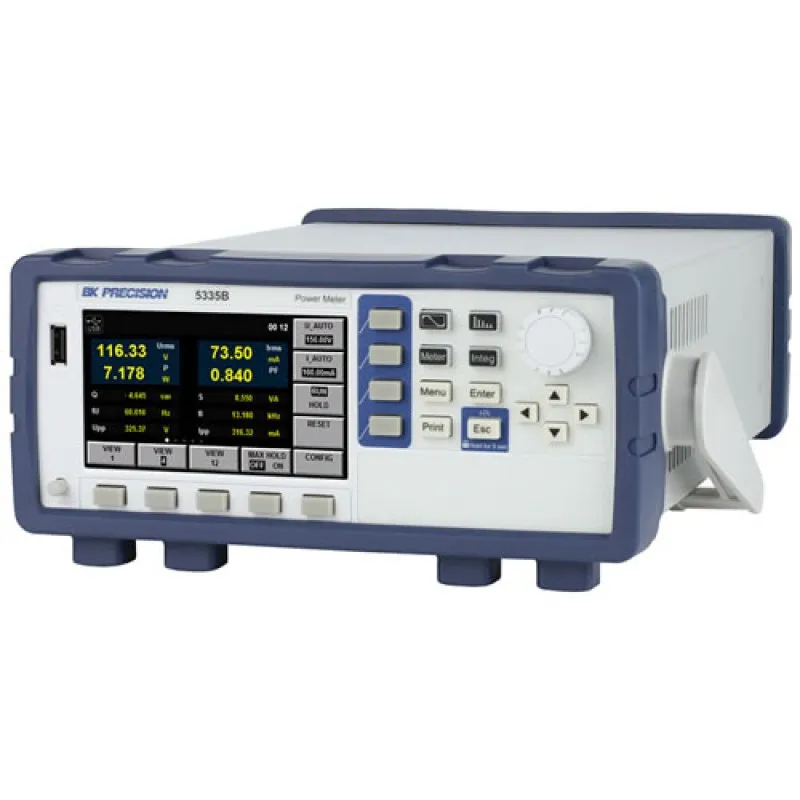

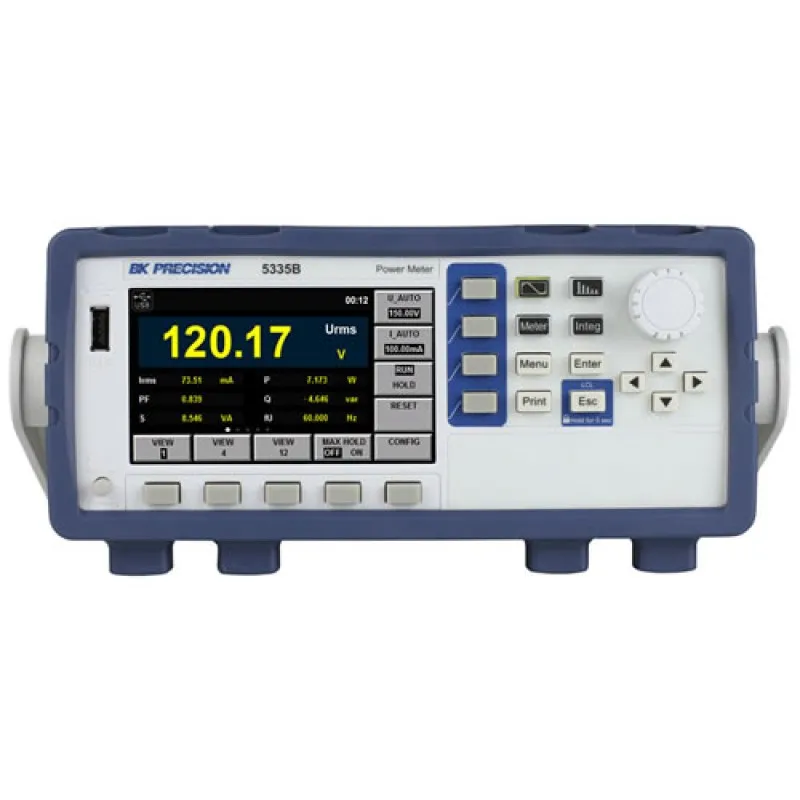

The front panel features an intuitive user interface with a large 4.3 inch color LCD screen capable of displaying measurement results in numeric or graphical format, dedicated function keys for 4 main measurement modes, and a USB host port. The meter measures all AC and DC parameters including power, current, voltage, power factor, frequency, and phase difference.

Additionally, the 5335B features a powerful integration function which is useful for analyzing energy produced and consumed. It can also be used to evaluate total harmonic distortion (THD) to the 50th order and it can display voltage and current readings in the time domain with the oscilloscope function. The meter is optimized for pre-compliance testing according to international standards such as IEC/EN 62000-3-2 / 4-7. The meter is also equipped with standard USB, GPIB, RS232 and LAN interfaces for remote control, data logging and data analysis.

Features:

  • 600 Vrms ( Cat II ) and 20 Arms direct input ranges
  • Frequency ranges DC, 0.5 Hz to 100 kHz
  • 4 measurement modes: meter, harmonic, integral or oscilloscope
  • 0.1% basic accuracy for voltage and current measurements
  • 4.3-inch color LCD (TFT)
  • Simultaneously measure and display up to 12 different measurement parameters
  • Capture inrush current, and voltage surge with the peak function
  • Harmonic measurements to the 50th order
  • Integration function with automatic range switching
  • Ability to measure electric energy which is produced or consumed
  • Pre-compliance testing according to IEC/EN62000-3-2 / 4-7
  • Standard USB, GPIB, RS232 and LAN interfaces
  • Line and frequency filter capability for reducing unwanted signal noise

What's In The Box:

  • (1) USB type A-to-type B cable
  • (1) AC Power Cord
  • (1) Certificate of Calibration
  • (1) Getting Started Manual

Brochure/Datasheet

Instruction manual

Note: Prices are not binding , subject to change without prior notice
