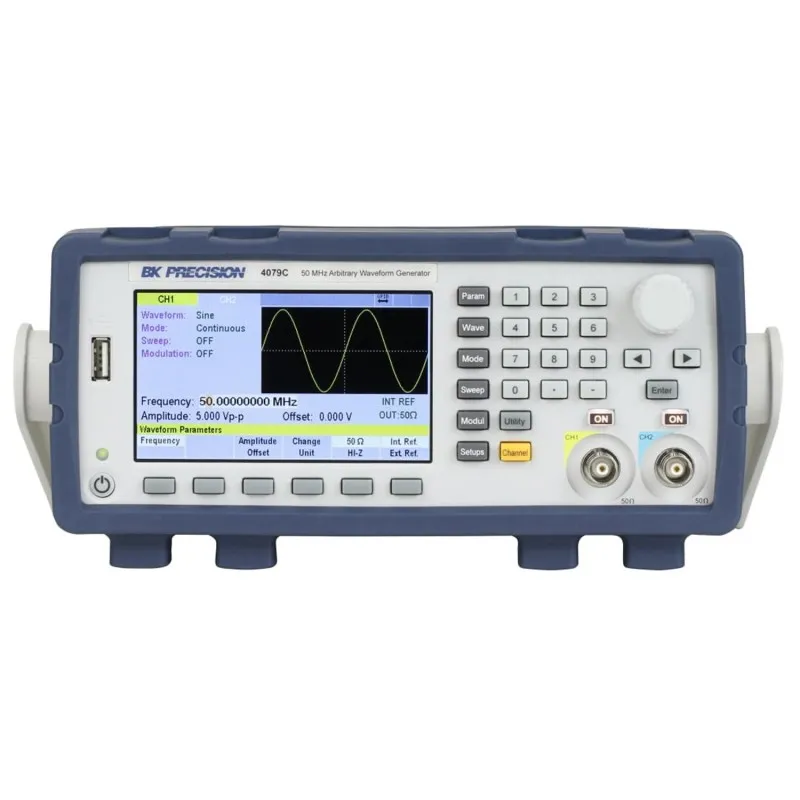

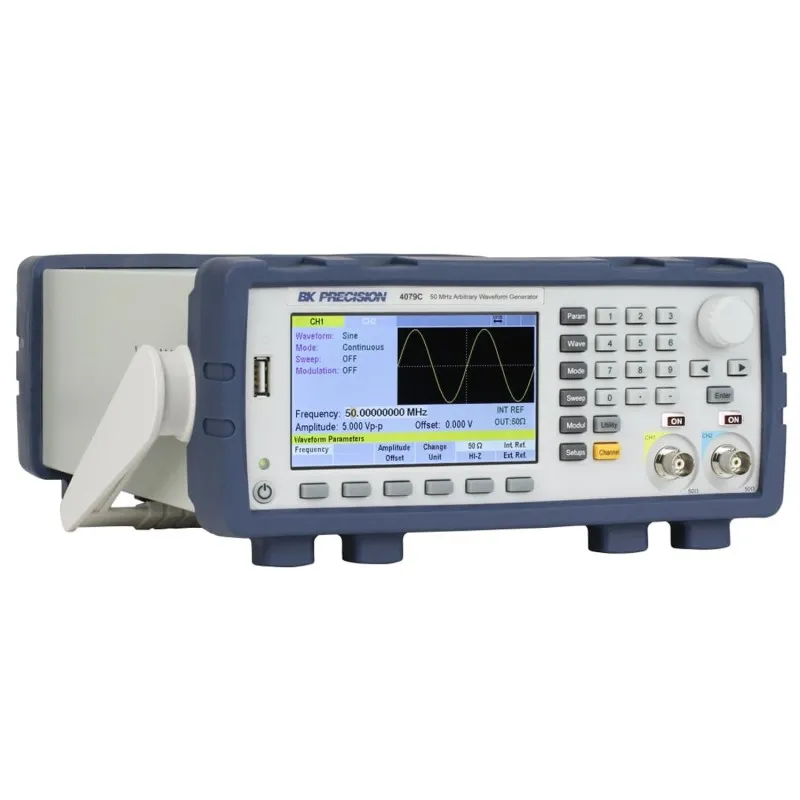

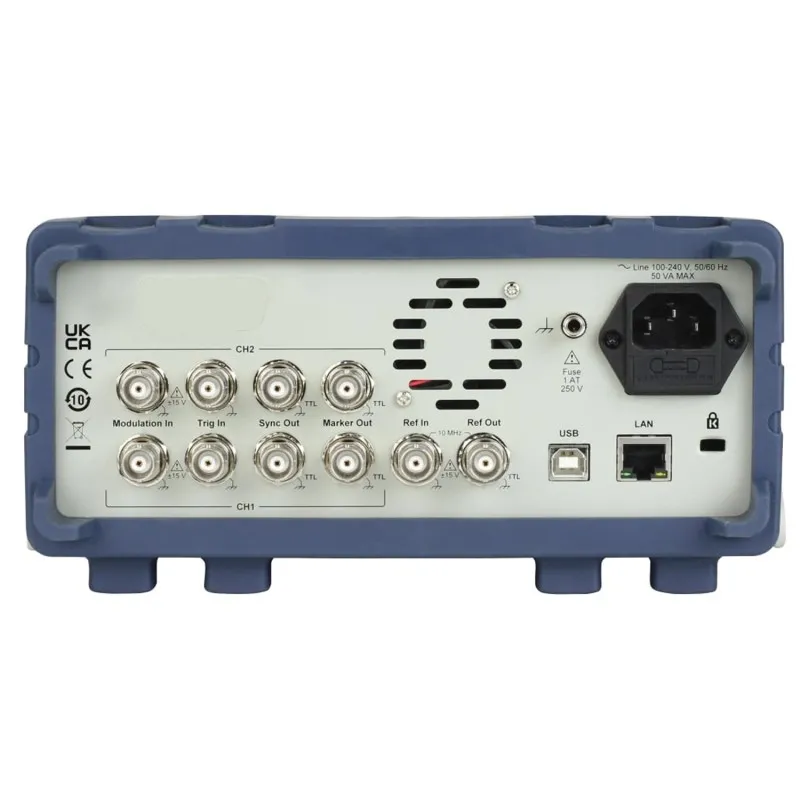

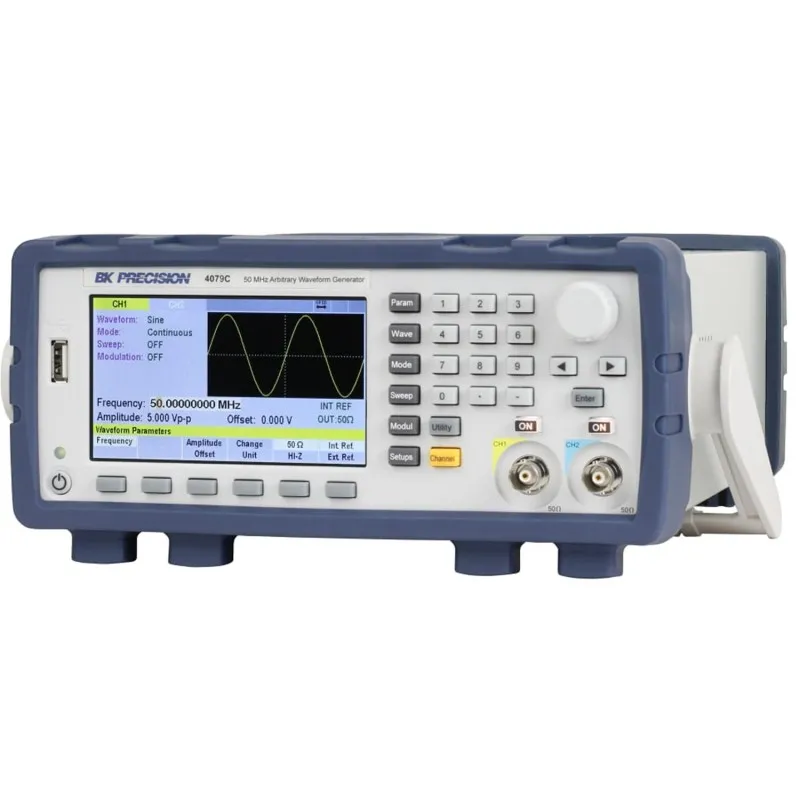

BK Precision 4079C [4079C-GPIB-220V] 50 MHz Arbitrary/Function Waveform Generator with GPIB, 220V

Name: BK Precision 4079C [4079C-GPIB-220V] 50 MHz Arbitrary/Function Waveform Generator with GPIB, 220V
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

BK Precision 4079C [4079C-GPIB-220V] 50 MHz Arbitrary/Function Waveform Generator with GPIB, 220V

0 reviews • Write a review

from

Rp.78,691,9350

Ex Tax: Rp.78,691,9350

Brand: BK Precision
Part Number: 4079C-GPIB-220V
Availability: 4 - 6 WEEKS
Last Updated: 26 Oct 2024

BK Precision

Qty

Add to Cart

Add to Wish List Compare this Product

Tags: Additel , Digital , Pressure , Calibrators

Description

The BK Precision 4079C-GPIB 50 MHz Arbitrary/Function Waveform Generator is a versatile, high-performance dual-channel arbitrary waveform generator with 16-bit amplitude resolution. It provides variable output voltages from 0 to 10 Vp-p into 50 ohms, up to 20 Vp-p into an open circuit, and a continuously variable DC offset to bias the output signal at a desired level. Custom arbitrary waveform generation is implemented with a true point-by-point design, offering improved signal integrity by producing significantly less jitter and distortion compared to a DDS based architecture. Generate high resolution true arbitrary waveforms up to 250 MSa/s without skipping points. Use the provided software to edit waveforms and convert them from .txt, .csv and .bin files to .arb files for download to the instrument. Alternatively, custom waveforms can be created from the front panel using the built-in waveform editor. Extensive features such as internal or external AM, FM, and FSK modulation along with versatile sweep capabilities and variable edge pulse generation make these generators suitable for a wide range of applications. True point-by-point AWG capabilities make these generators suitable for simulating clock signals, generating triggers, or validating serial data buses. Applications include electronic design, sensor simulation, and other applications requiring precise arbitrary waveform generation. Download the 407XC software to convert any text, binary, or CSV file into an arbitrary waveform file. Upload files directly to the instrument via USBTMC or LAN, or export the file to a USB flash drive and recall it from the front panel.
