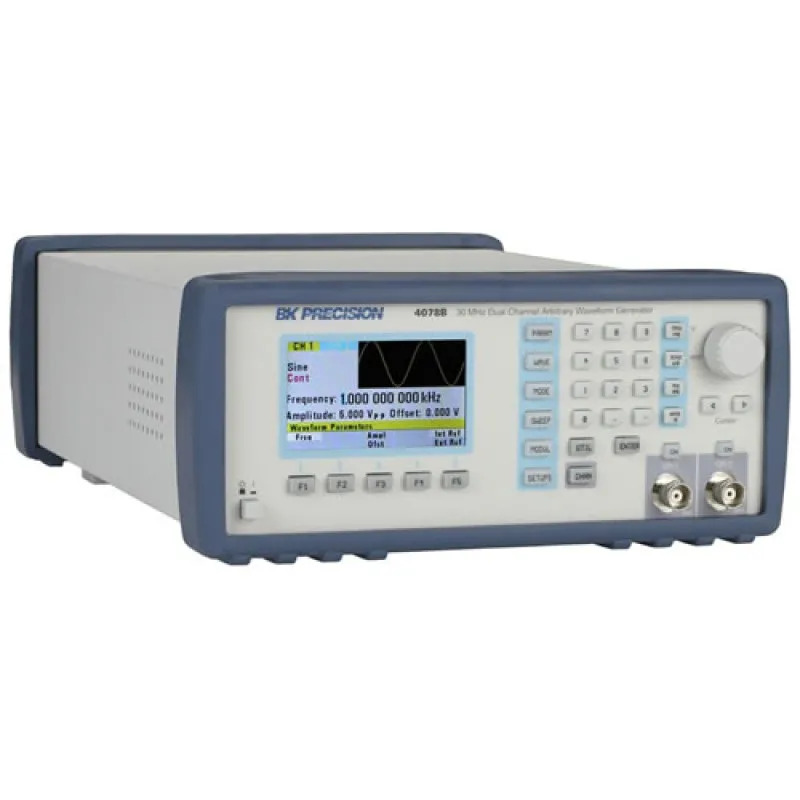

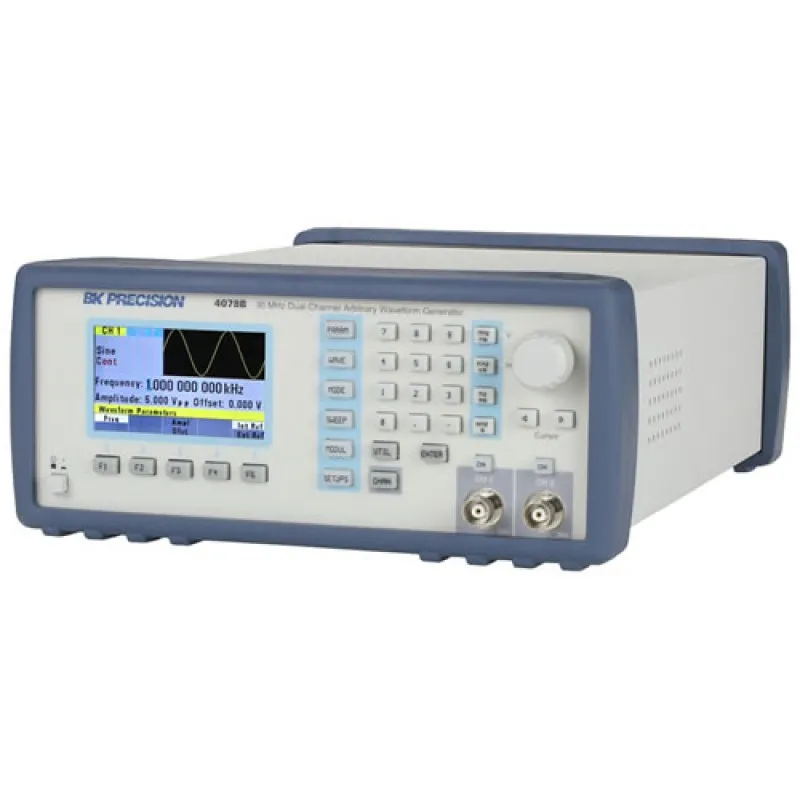

BK Precision 4078B 30 MHz Dual Channel Function/Arbitrary Waveform Generator

BK Precision 4078B 30 MHz Dual Channel Function/Arbitrary Waveform Generator
BK Precision 4078B 30 MHz Dual Channel Function/Arbitrary Waveform Generator
BK Precision 4078B 30 MHz Dual Channel Function/Arbitrary Waveform Generator
BK Precision 4078B 30 MHz Dual Channel Function/Arbitrary Waveform Generator
BK Precision 4078B 30 MHz Dual Channel Function/Arbitrary Waveform Generator
BK Precision 4078B 30 MHz Dual Channel Function/Arbitrary Waveform Generator
BK Precision 4078B 30 MHz Dual Channel Function/Arbitrary Waveform Generator
BK Precision 4078B 30 MHz Dual Channel Function/Arbitrary Waveform Generator
BK Precision 4078B 30 MHz Dual Channel Function/Arbitrary Waveform Generator
BK Precision 4078B 30 MHz Dual Channel Function/Arbitrary Waveform Generator
BK Precision 4078B 30 MHz Dual Channel Function/Arbitrary Waveform Generator
from
Rp.58,750,0000
Ex Tax: Rp.58,750,0000
  • Brand: BK Precision
  • Part Number: 4078B
  • Availability: 4 - 6 WEEKS
  • Last Updated: 26 Mar 2024
BK Precision BK Precision
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

The 4078B Arbitrary/Function Waveform Generators combine a DDS architecture offering easy-to-use conventional function generator capabilities with a true point-by-point AWG architecture to produce accurate and precise arbitrary waveforms. Arbitrary waveforms have 14-bit amplitude resolution, 200 MSa/s sample rate, and large waveform memory up to 16,000,000 points (depending on model). Waveforms can be output in continuous, triggered, gated, or burst modes. The instrument can be remotely controlled using SCPI-compliant commands via USB and GPIB. Extensive features such as internal or external AM, FM, and FSK modulation along with versatile sweep capabilities and variable edge pulse generation make these generators suitable for a wide range of applications including electronic design, sensor simulation, and functional test.

Features:

  • Max frequency: 30 MHz
  • Channels: 2
  • User-defined arbitrary waveforms: 1M points x 8 memory banks per ch
  • Vertical resolution: 14 bits
  • Sampling rate: 200 MSa/s
  • Modulation: AM,FM,FSK
  • Interface: USB, GPIB
  • Warranty: 3 years
  • Color LCD display
  • Linear and logarithmic sweep
  • Programmable markers for precise triggering
  • SCPI-compliant command set
  • Closed case calibration
  • Short circuit protection for resistive and capacitive loads on outputs and over voltage protection on inputs
  • Simple integration with WaveXpress waveform editing software to send your waveform creations to the arbitrary waveform generator

What's In The Box:

  • (1) Full instruction manual on CD
  • (1) AC power cord
  • (1) USB type A to type B cable
  • (1) Certificate of calibration
  • (1) Test report

Brochure/Datasheet

Instruction manual

Note: Prices are not binding , subject to change without prior notice
