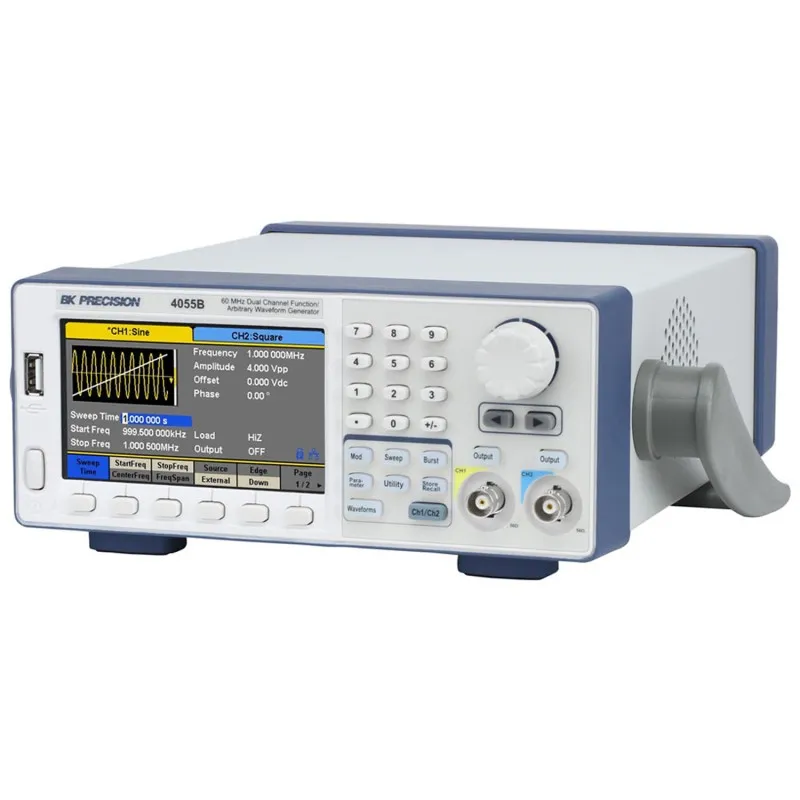

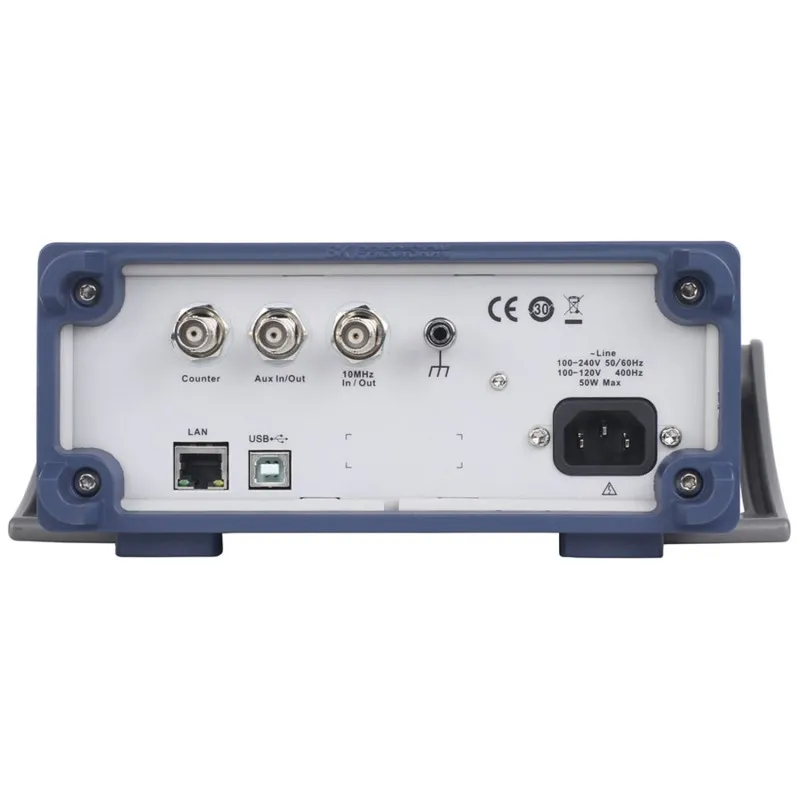

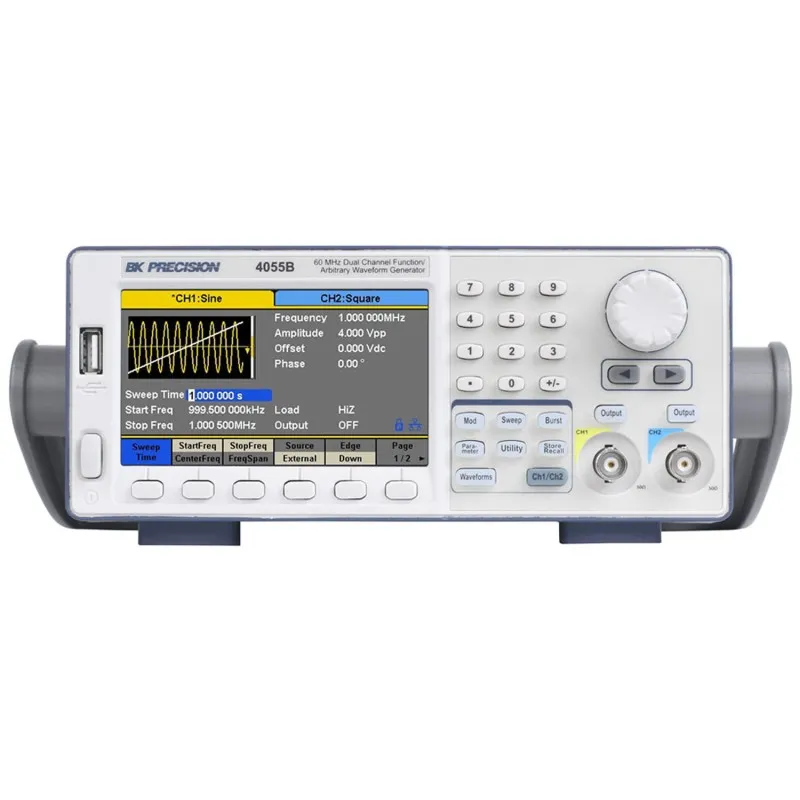

BK Precision 4050B Series Dual Channel Function/Arbitrary Waveform Generators

Name: BK Precision 4050B Series Dual Channel Function/Arbitrary Waveform Generators
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

BK Precision 4050B Series Dual Channel Function/Arbitrary Waveform Generators

0 reviews • Write a review

from

Rp.21,213,5480

Ex Tax: Rp.21,213,5480

Brand: BK Precision
Part Number: 405
Availability: 4 - 6 WEEKS
Last Updated: 12 Nov 2024

BK Precision

Qty

Add to Cart

Add to Wish List Compare this Product

Configure Options

Tags: Additel , Digital , Pressure , Calibrators

Description

The 4050B Series Dual Channel Function/ Arbitrary Waveform Generators are capable of generating stable and precise sine, square, triangle, pulse, and arbitrary waveforms. With an easy-to-read color display and intuitive user interface with numeric keypad, these instruments offer plenty of features including linear/logarithmic sweep, built-in counter, extensive modulation and triggering capabilities, a continuously variable DC offset, and a high performance 14-bit, 150 MSa/s arbitrary waveform generator. CH1 and CH2 outputs can both be varied from 0 to 10 Vpp into 50 ohms (up to 20 Vpp into open circuit). Easily create custom arbitrary waveforms using the included waveform editing software or use any of the 196 built-in predefined arbitrary waveforms. More than 1000 user-defined 16k point arbitrary waveforms can be saved to the instrument. Additionally, the included LabVIEW™ drivers allow users to conveniently load and save .csv or .txt file data directly into the arb memory without having to use waveform editing software. Extensive modulation capabilities include amplitude and frequency modulation (AM/FM), double sideband amplitude modulation (DSB AM), amplitude and frequency shift keying (ASK/ FSK), phase modulation (PM), phase shift keying (PSK), and pulse width modulation (PWM). The standard external 10 MHz reference clock input and output allows users to synchronize their instrument with another generator. Additionally, the generators offer powerful channel copy, track and combine functionality and the phase of both output channels can be synchronized conveniently with the push of a button. These handy features are typically not found in function generators at this price point. These versatile function/arbitrary waveform generators are suitable for education and other applications that require high signal fidelity, a variety of modulation schemes, or arbitrary waveform generation capabilities.
