BK Precision 4033 [4033-220V] Single-Channel High-Performance Programmable Pulse Generator w/GPIB/RS-232 Interface, 0.1 Hz to 50 MHz, 220V

Name: BK Precision 4033 [4033-220V] Single-Channel High-Performance Programmable Pulse Generator w/GPIB/RS-232 Interface, 0.1 Hz to 50 MHz, 220V
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

BK Precision 4033 [4033-220V] Single-Channel High-Performance Programmable Pulse Generator w/GPIB/RS-232 Interface, 0.1 Hz to 50 MHz, 220V

from

Rp.163,940,0000

Ex Tax: Rp.163,940,0000

Brand: BK Precision
Part Number: 4033-220V
Availability: 4 - 6 WEEKS
Last Updated: 26 Oct 2024

BK Precision

Qty

Add to Cart

Add to Wish List Compare this Product

Tags: Additel , Digital , Pressure , Calibrators

Description

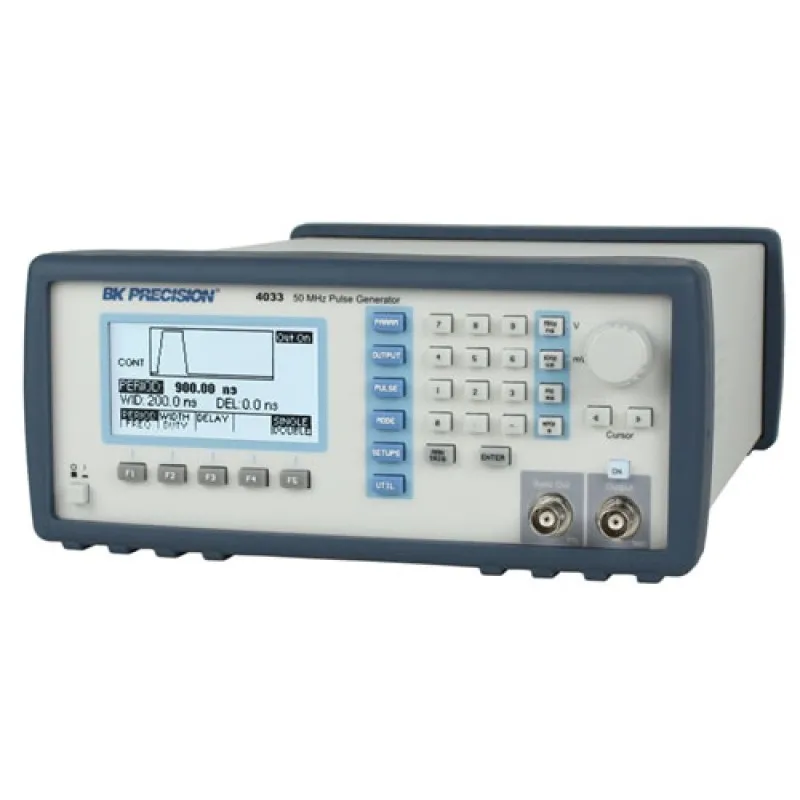

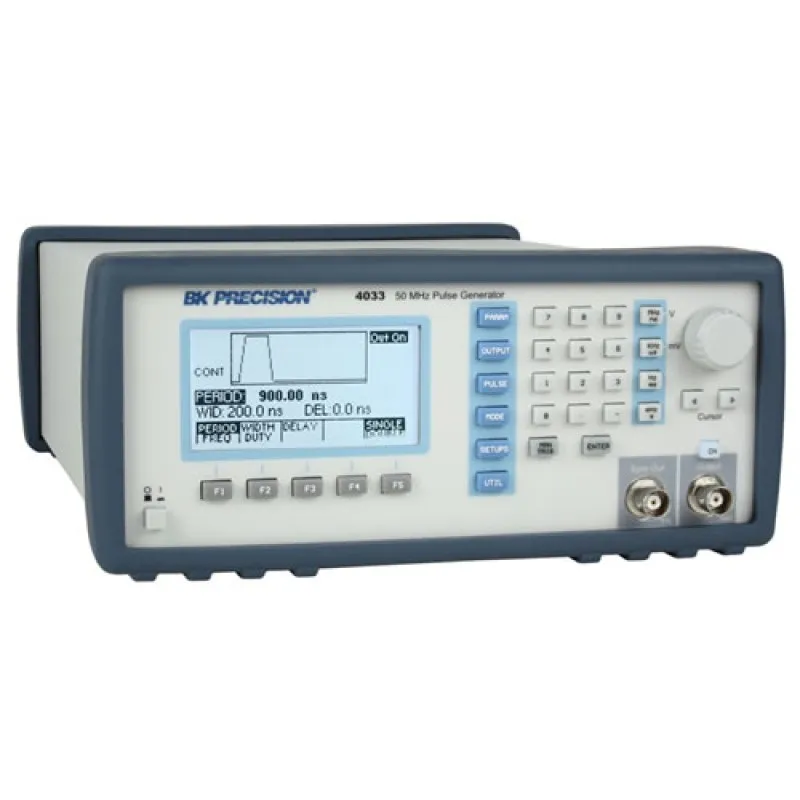

The BK Precision 4033 is a high performance programmable pulse generator for testing digital systems and circuits based on TTL, CMOS, or ECL technologies. The BK 4033 generates clean and accurate pulses at up to 6 digits resolution with a repetition rate up to 50 MHz, variable pulse widths from 10 ns to 10 s, and pulse delays from 0 ns to 10 s. Output levels are adjustable from -10 V to +10 V, with pulse amplitudes settable from 0.1 Vpp to 10 Vpp into a 50 ohm load. All parameters, modes, and functions are programmable via the front panel or remote control commands. Additionally, the pulse generator provides selectable complementary pulse and double pulse generation in continuous, triggered, gated, and counted burst modes.
