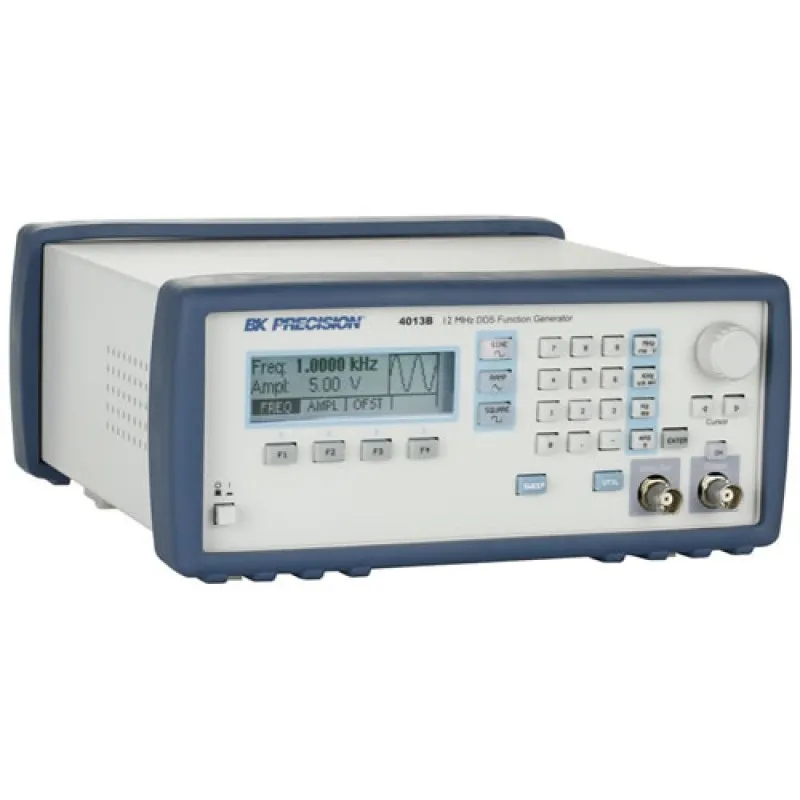

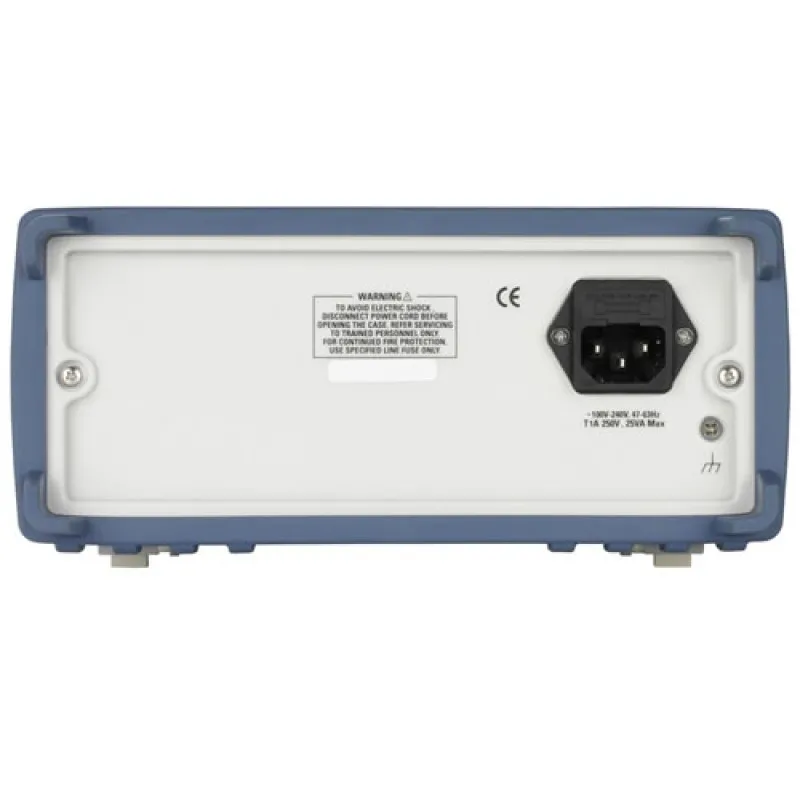

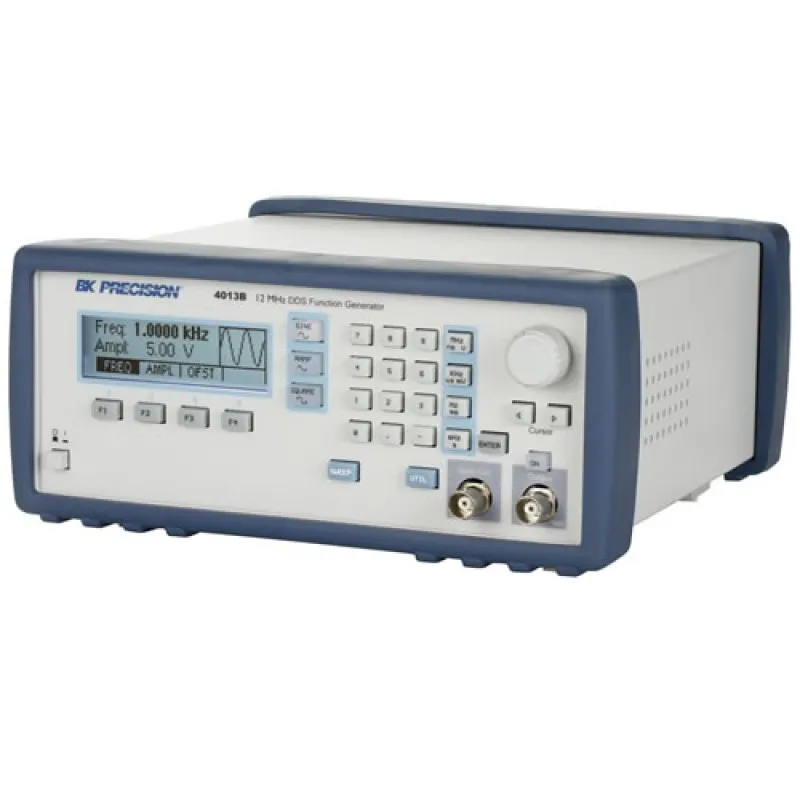

BK Precision 4013B [4013B-230V] 12 MHz DDS Sweep Function Generator, 230VAC Line Input

Name: BK Precision 4013B [4013B-230V] 12 MHz DDS Sweep Function Generator, 230VAC Line Input
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

BK Precision 4013B [4013B-230V] 12 MHz DDS Sweep Function Generator, 230VAC Line Input

0 reviews • Write a review

from

Rp.14,870,1610

Brand: BK Precision
Part Number: 4013B-230V
Availability: 2 - 4 WEEKS
Last Updated: 13 Nov 2024

BK Precision

Qty

Add to Cart

Add to Wish List Compare this Product

Tags: Additel , Digital , Pressure , Calibrators

Description

The BK Precision 4013B DDS Function Generator features high signal precision and stability. This instrument generates sine and square waveforms up to 12 megahertz and triangle waveforms up to 1 megahertz. Variable output voltages from 0 to 10 peak volts into 50 ohms or up to 20 peak volts into open circuit are provided. The continuously variable DC offset allows the output to be injected directly into circuits at the correct bias level. Implemented using Direct digital Synthesis (DDS) architecture, this instrument generates stable and precise sine, square, and triangle waveforms. Also provided is linear and logarithmic sweep for users needing sweep capability. The auxiliary TTL output at the generator's frequency is available to synchronize external devices. Up to 9 front panel settings can be saved to memory storage. The BK Precision 4013B DDS Function Generator is suitable for education and other applications that require basic DDS function generators with sweep capability.

Intuitive User Interface
The user can easily change all waveform parameters by using the intuitive menu-driven front panel keypad, control knob, and easy-to-read LCD screen. The convenient waveform and range selection buttons lets users make quick and precise adjustments.
