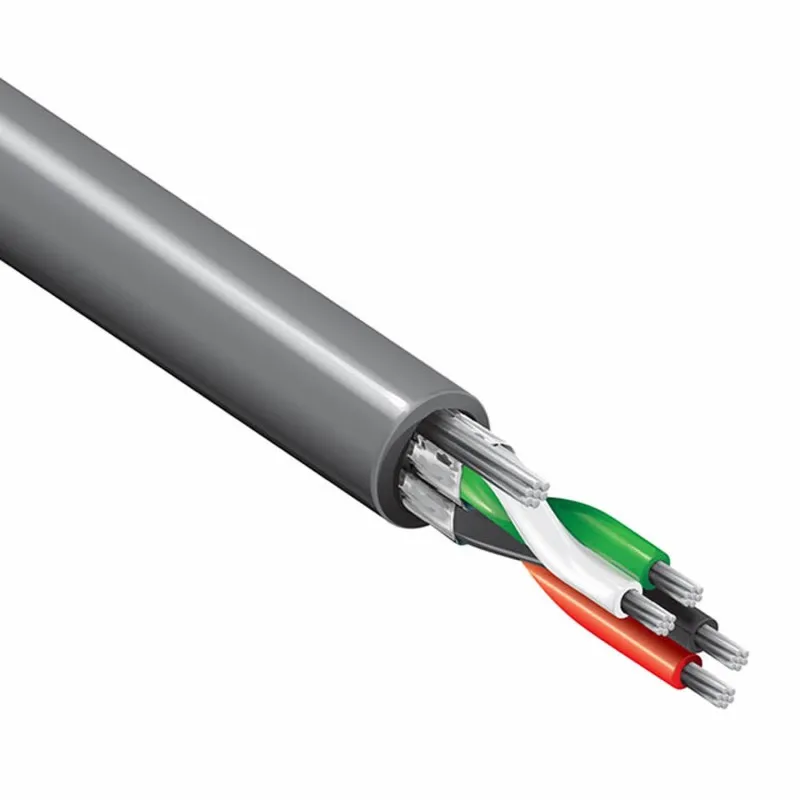

Belden 8723 [8723-30] Multi-Conductor - Shielded Twisted Pair Cable, 30m

Belden 8723 [8723-30] Multi-Conductor - Shielded Twisted Pair Cable, 30m
Belden 8723 [8723-30] Multi-Conductor - Shielded Twisted Pair Cable, 30m
0 reviews • Write a review
from
Rp.750,0000
  • Brand: RM Young
  • Part Number: 8723-30
  • Availability: 021 - 53167044 | 0812-83861970
  • Last Updated: 20 Mar 2024
RM Young RM Young
Add to Cart
Add to Wish List Compare this Product
Tags: RM Young , Ultrasonic , Anemometer , Analog , Serial Outputs

22 AWG stranded (7x30) tinned copper conductors, polypropylene insulation, twisted pairs, individually Beldfoil® shielded (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.

Features:

  • CPR: Not Yet Qualified
  • 22AWG stranded (7x30) tinned copper conductors
  • Polypropylene insulation
  • Individual Beldfoil shielding (100% coverage)
  • Polyvinyl chloride (PVC) outer jacket
  • Overall nominal diameter of 0.160inch
  • Operating temperature range from -20°C to 75°C
  • Nominal characteristic impedance of 52ohm
  • Nominal conductor DC resistance (DCR) of 14.7ohm/1000ft
  • Maximum operating voltage of 300Vrms (according to UL)
  • Maximum recommended current of 2.3A per conductor at 25°C
  • Continuous Length in 1 Metre Multiples

                      What's In The Box:

                      • (1) 30m Cable

                      Brochure/Datasheet

                      Instruction manual
