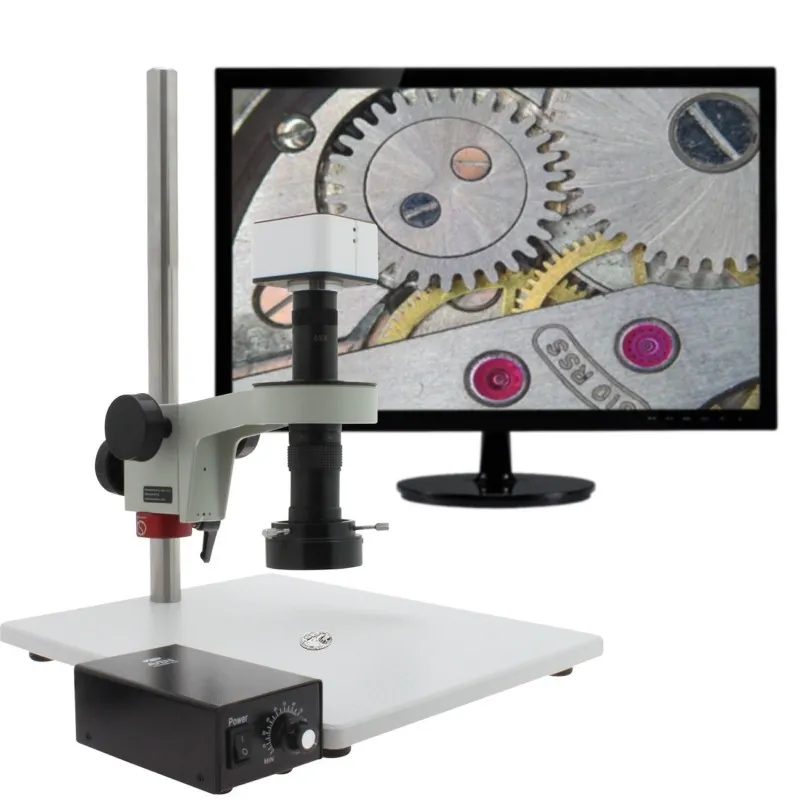

Name: Aven Tools Mighty Cam USB [MLS640-244-570] Video Inspection System with Post Stand and Micro Lens, 26x to 349x Magnification
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Aven Tools Mighty Cam USB [MLS640-244-570] Video Inspection System with Post Stand and Micro Lens, 26x to 349x Magnification

0 reviews • Write a review

from

Rp.61,824,5160

Brand: AVEN Tools
Part Number: MLS640-244-570
Availability: 4 - 6 WEEKS
Last Updated: 10 Nov 2022

AVEN Tools

Qty

Add to Cart

Add to Wish List Compare this Product

Tags: Benchmark Scientific , MR9600-E , Accuris SmartReader 96 , Microplate , Absorbance Reader , 230 V

Description

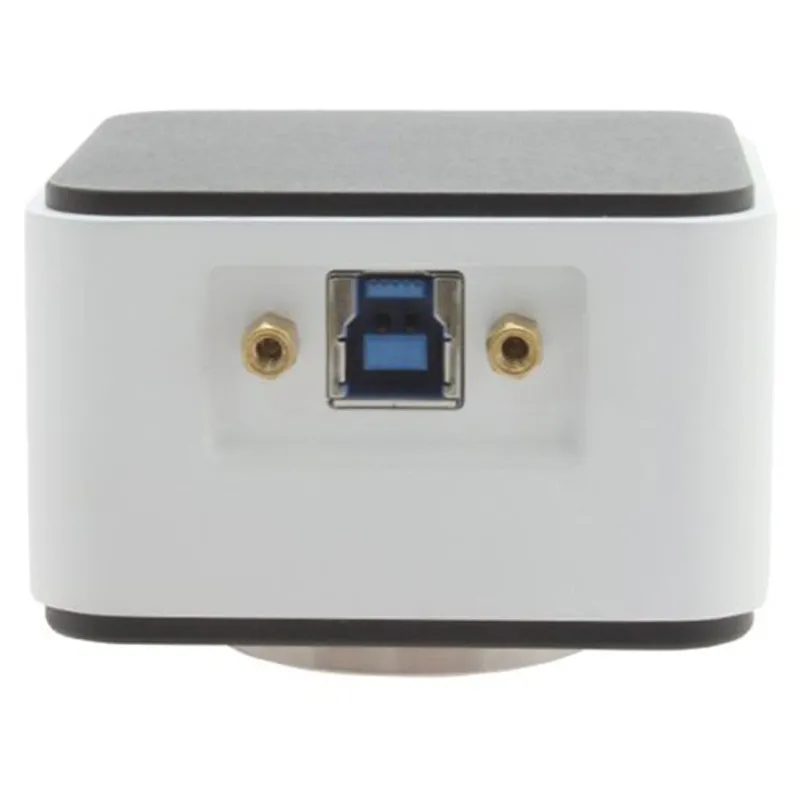

Designed for high magnification, the Aven Tools MLS640-244-570 Mighty Cam USB Video Inspection System with Post Stand features a specialized digital microscope that has a magnification range of 26.2x - 349.3x. This system includes Aven's Mighty Cam USB 3.0 camera. Users can view real time images, capture image/video files, and measure with the included software. The camera is equipped with a USB output for PC connectivity. The system includes a 1x objective lens and a 0.5x objective lens. The system The system also includes Aven's Standard Post Stand.

Unprecedented Inspection Experience

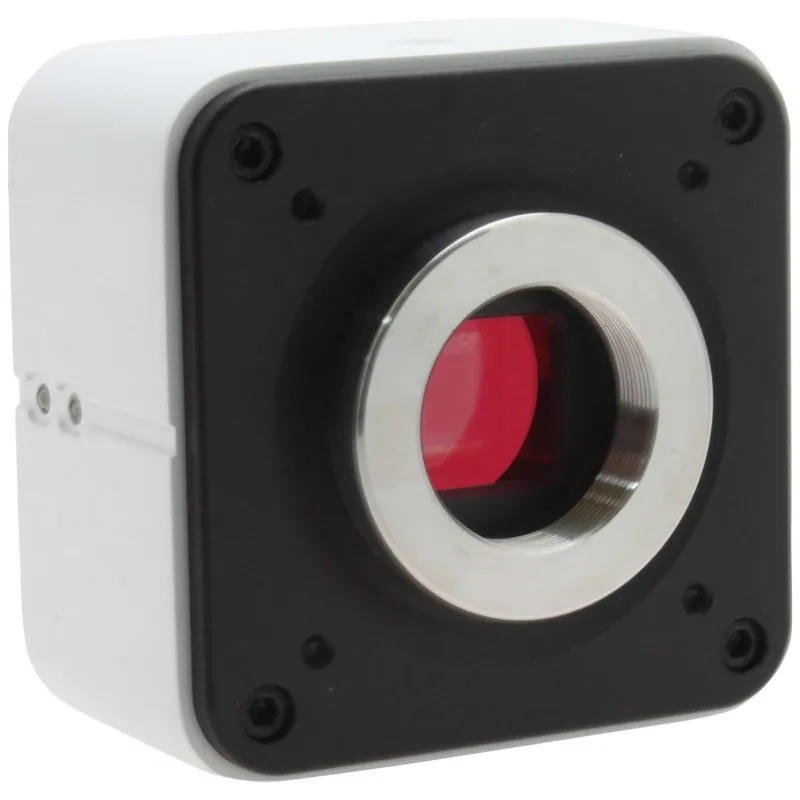

The MLS640-244-534 features Aven's Mighty Cam USB 6M CMOS Camera with imaging and measurement software. Users can create stunning images with outstanding clarity then measure, annotate and analyze with ease with the imaging software.

Perfect Color Reproduction
The camera's color processing is capable of a new level of precision, producing extremely high color definition.

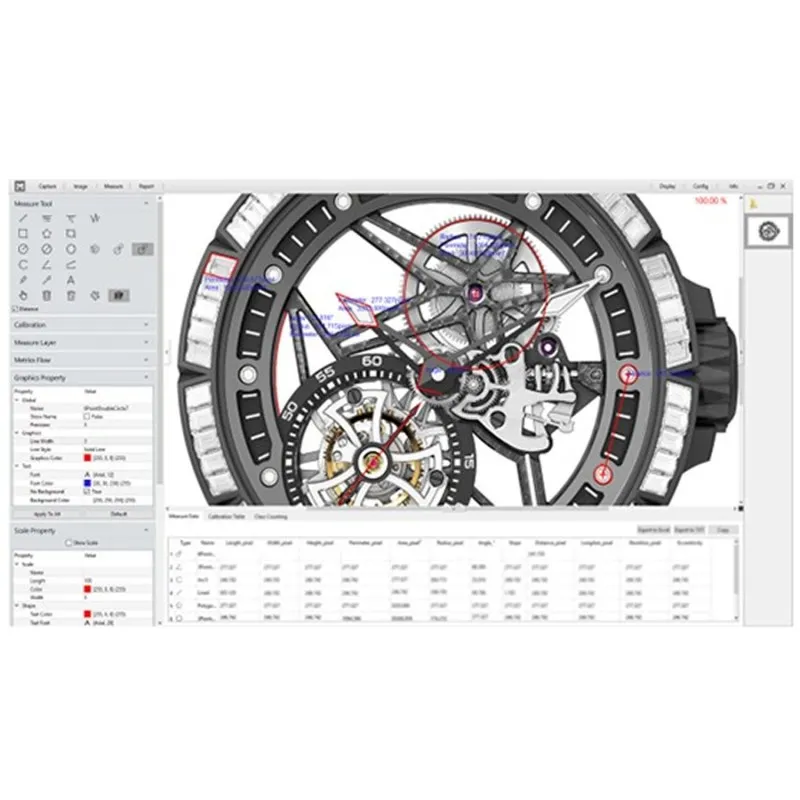

Measurement Tools
On screen tools within the included software provide powerful measurement functions, such as freehand line, rectangle, polygon, circle, bicircle, angle, point-line distance and much more. Three different length units of millimeter, centimeter and micrometer are provided to meet various measurement requirements in different applications.

Real Time Depth of Field Fusion
The Mighty Cam Pro can change the depth of field without adjusting the optics. Simply click on the part of the image you want to focus on and the camera will bring that sector into focus.

Precision Engineered Micro Zoom Lens
Aven's Micro Lens System produces crisp and clear images that are distortion free and void of chromatic aberration. This lens system comes with detents that allow you to calibrate the lens for measurement repeatability. Total magnification is 0.6x to 4.0x, Field of View is 6 x 8mm at low magnification and 0.8 x 1.2mm at high magnification. Working Distance is 82mm. Additional couplers and objective lenses are available separately to help you configure a lens system to meet your application.

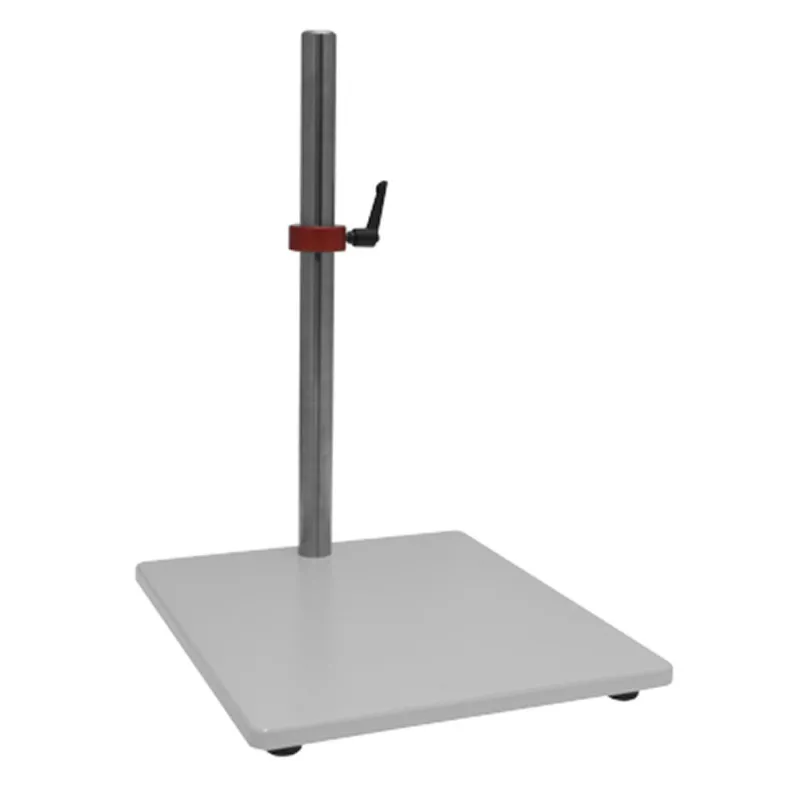

Standard Stand
This heavy duty stand is perfect for applications where horizontal extension is limited. The large base (279 x 330 x 12.7mm) is designed to accommodate a large variety of parts. The post diameter is 25mm.
