Name: Aven Tools Mighty Cam Pro [26700-121-PRO] Auto Focus Video Inspection System with Flex Stand and Macro Lens, 7x to 70x Magnifcation
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Aven Tools Mighty Cam Pro [26700-121-PRO] Auto Focus Video Inspection System with Flex Stand and Macro Lens, 7x to 70x Magnifcation

from

Rp.58,369,3550

Ex Tax: Rp.58,369,3550

Brand: AVEN Tools
Part Number: 26700-121-PRO
Availability: 4 - 6 WEEKS
Last Updated: 09 Nov 2022

AVEN Tools

Qty

Add to Cart

Add to Wish List Compare this Product

Tags: Benchmark Scientific , MR9600-E , Accuris SmartReader 96 , Microplate , Absorbance Reader , 230 V

Description

The Aven Tools 26700-121-PRO Mighty Cam Pro Auto Focus Video Inspection System offers superb image quality at 60 frames per second, while featuring a 6 in. working distance with 7x-70x magnification range. Users can operate this system with or without a PC. Without a PC, the Mighty Cam Pro camera connects directly to the included HDMI monitor, allowing users to view and record images and perform measurements using the included on-screen tools. Images and videos can be saved to the included SD card. By connecting the camera to a PC, users can to utilize more advanced features with the included software. The system also features an LED Ring Light that allows users illuminate objects, resulting in the sharpest and greatest detail. Meanwhile, the versatile Flexible Arm Stand easily bends and stays put in any position.

High-Speed Focusing Experience

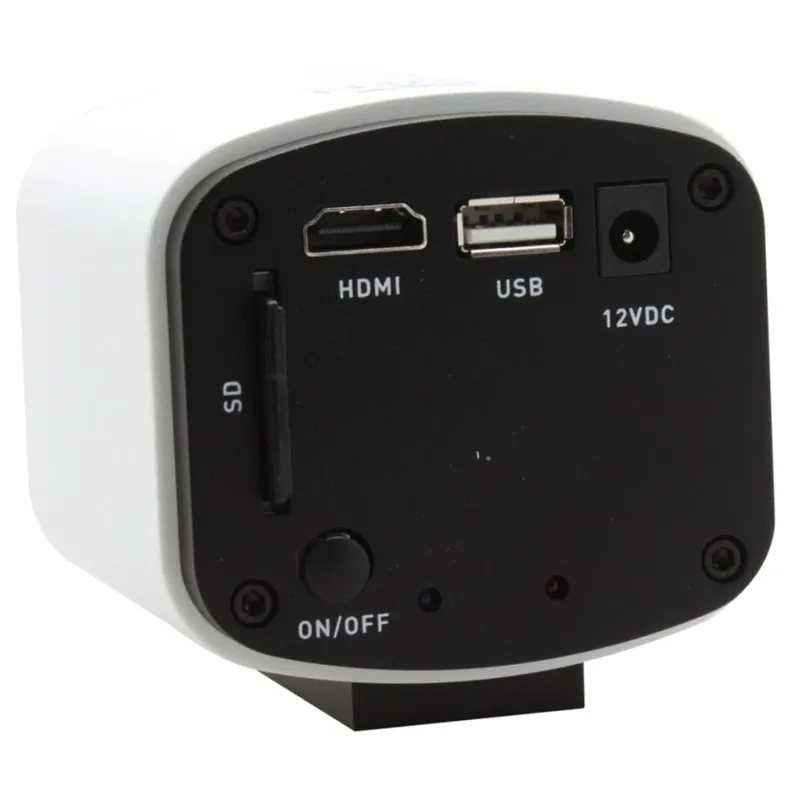

The heart of this system is the Mighty Cam Pro auto focus camera. It offers both USB and HDMI outputs for inspection from an HD monitor or your PC via the included Mosaic software. This camera features auto focus capabilities, achieving an instant clear image with no need to adjust the physical optics. This camera also features a built-in SD card port for capturing instant high resolution images with no need for a PC.

Integrated Measurement System - No PC Required
Built in on screen tools provide powerful measurement functions including freehand line, rectangle, polygon, circle, bicircle, angle, point-line distance and much more. Three different length units of millimeter, centimeter and micrometer are provided to meet various measurement requirements in different applications. Simple calibration tool is also included.

Real Time Depth of Field Fusion
The Mighty Cam Pro can change the depth of field without adjusting the optics. Simply click on the part of the image you want to focus on and the camera will bring that sector into focus.

Stitching Feature
Utilizing the Mosaic software package, operators can generate large panoramic images. Simply glide an object under the camera and the advanced software will stitch together images into one larger image.

Precision Engineered Macro Lens
The macro lens included with this system offers unsurpassed clarity and parfocal zoom capabilities. The lens provides manual adjustment of focal length, iris and focus. The lens has a C-mount and working distance of 6 in. to 18 in.

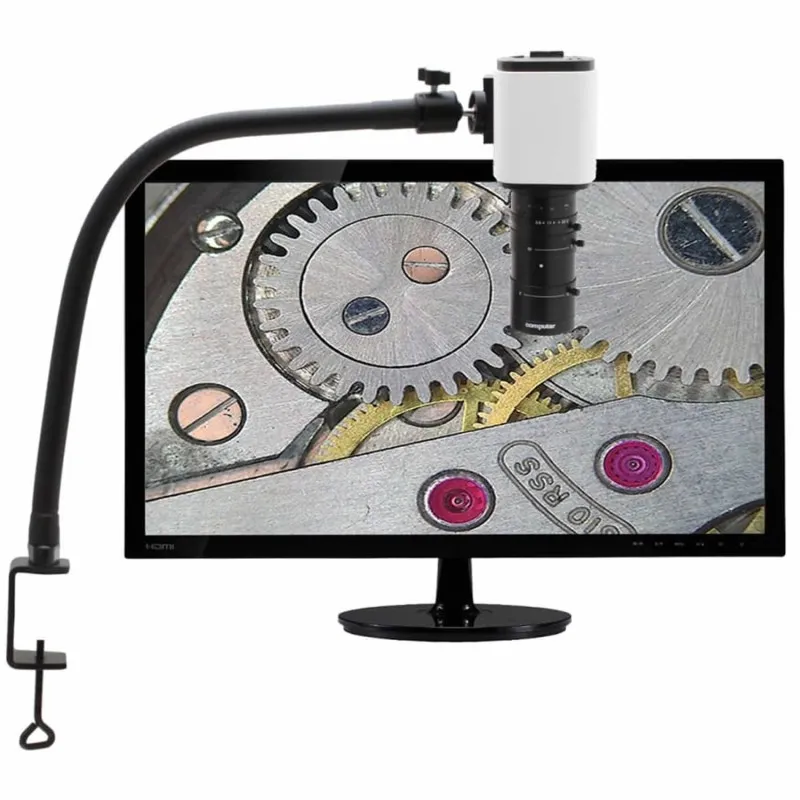

FlexArm with Table Clamp
The 18" Flexible Arm Stand is a hassle-free addition to the inspection system. The arm easily bends and stays put in any position. Tilt, rotate, and position as needed.

LED Ring Light
This compact source of LED lighting with a fully adjustable high resolution dimmer provides uniformity and shadow free illumination. It consists of 96 LED lights that do not heat or flicker.

360 Ball Joint
The included 360 ball joint enables users to rotate and tilt the camera to the ideal position. Users can inspect from nearly any angle.
