Aven Tools Mighty Cam Pro [26700-109-PRO] Auto Focus Video Inspection System with Post Stand and Micro Lens, 28.8x to 384x Magnification

Aven Tools Mighty Cam Pro [26700-109-PRO] Auto Focus Video Inspection System with Post Stand and Micro Lens, 28.8x to 384x Magnification
Aven Tools Mighty Cam Pro [26700-109-PRO] Auto Focus Video Inspection System with Post Stand and Micro Lens, 28.8x to 384x Magnification
Aven Tools Mighty Cam Pro [26700-109-PRO] Auto Focus Video Inspection System with Post Stand and Micro Lens, 28.8x to 384x Magnification
Aven Tools Mighty Cam Pro [26700-109-PRO] Auto Focus Video Inspection System with Post Stand and Micro Lens, 28.8x to 384x Magnification
Aven Tools Mighty Cam Pro [26700-109-PRO] Auto Focus Video Inspection System with Post Stand and Micro Lens, 28.8x to 384x Magnification
Aven Tools Mighty Cam Pro [26700-109-PRO] Auto Focus Video Inspection System with Post Stand and Micro Lens, 28.8x to 384x Magnification
Aven Tools Mighty Cam Pro [26700-109-PRO] Auto Focus Video Inspection System with Post Stand and Micro Lens, 28.8x to 384x Magnification
Aven Tools Mighty Cam Pro [26700-109-PRO] Auto Focus Video Inspection System with Post Stand and Micro Lens, 28.8x to 384x Magnification
Aven Tools Mighty Cam Pro [26700-109-PRO] Auto Focus Video Inspection System with Post Stand and Micro Lens, 28.8x to 384x Magnification
Aven Tools Mighty Cam Pro [26700-109-PRO] Auto Focus Video Inspection System with Post Stand and Micro Lens, 28.8x to 384x Magnification
Aven Tools Mighty Cam Pro [26700-109-PRO] Auto Focus Video Inspection System with Post Stand and Micro Lens, 28.8x to 384x Magnification
Aven Tools Mighty Cam Pro [26700-109-PRO] Auto Focus Video Inspection System with Post Stand and Micro Lens, 28.8x to 384x Magnification
Aven Tools Mighty Cam Pro [26700-109-PRO] Auto Focus Video Inspection System with Post Stand and Micro Lens, 28.8x to 384x Magnification
Aven Tools Mighty Cam Pro [26700-109-PRO] Auto Focus Video Inspection System with Post Stand and Micro Lens, 28.8x to 384x Magnification
Aven Tools Mighty Cam Pro [26700-109-PRO] Auto Focus Video Inspection System with Post Stand and Micro Lens, 28.8x to 384x Magnification
from
Rp.76,470,1610
Ex Tax: Rp.76,470,1610
  • Brand: AVEN Tools
  • Part Number: 26700-109-PRO
  • Availability: 4 - 6 WEEKS
  • Last Updated: 09 Nov 2022
AVEN Tools AVEN Tools
Add to Cart
Add to Wish List Compare this Product
Tags: Benchmark Scientific , MR9600-E , Accuris SmartReader 96 , Microplate , Absorbance Reader , 230 V

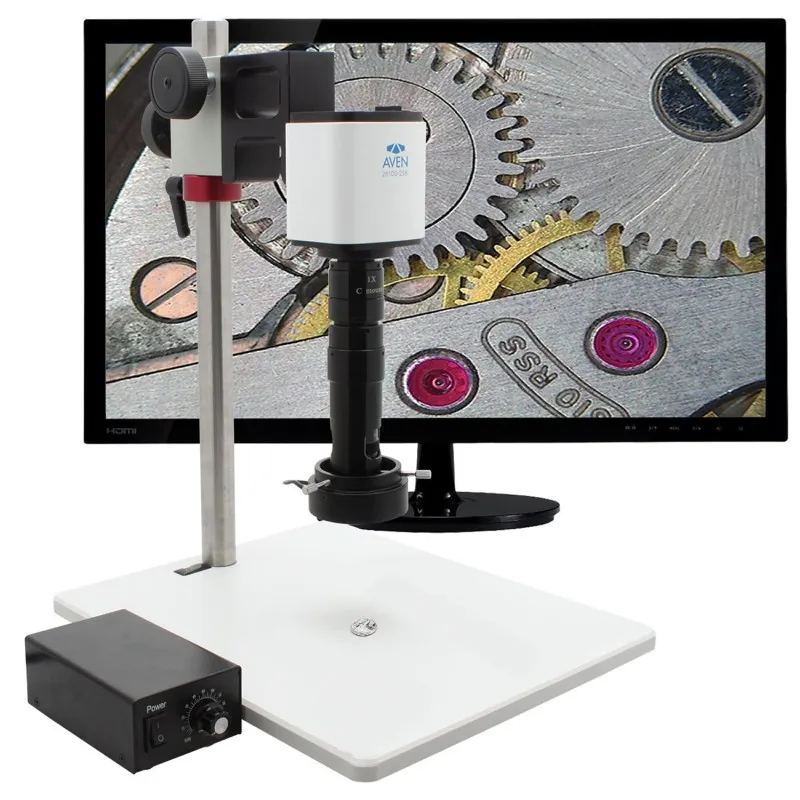

The Aven Tools 26700-109-PRO Mighty Cam Pro Auto Focus Video Inspection System offers superb image quality at 60 frames per second, while featuring an 82mm working distance with 28.8x - 384x magnification range. Users can operate this system with or without a PC. Without a PC, the Mighty Cam Pro camera connects directly to the included HDMI monitor, allowing users to view and record images and perform measurements using the included on-screen tools. Images and videos can be saved to the included SD card. By connecting the camera to a PC, users can to utilize more advanced features with the included software. The system also features an LED ring light that allows users to illuminate objects, resulting in the sharpest and greatest detail. Meanwhile, the heavy duty stand is perfect for applications where horizontal extension is limited.

High-Speed Focusing Experience

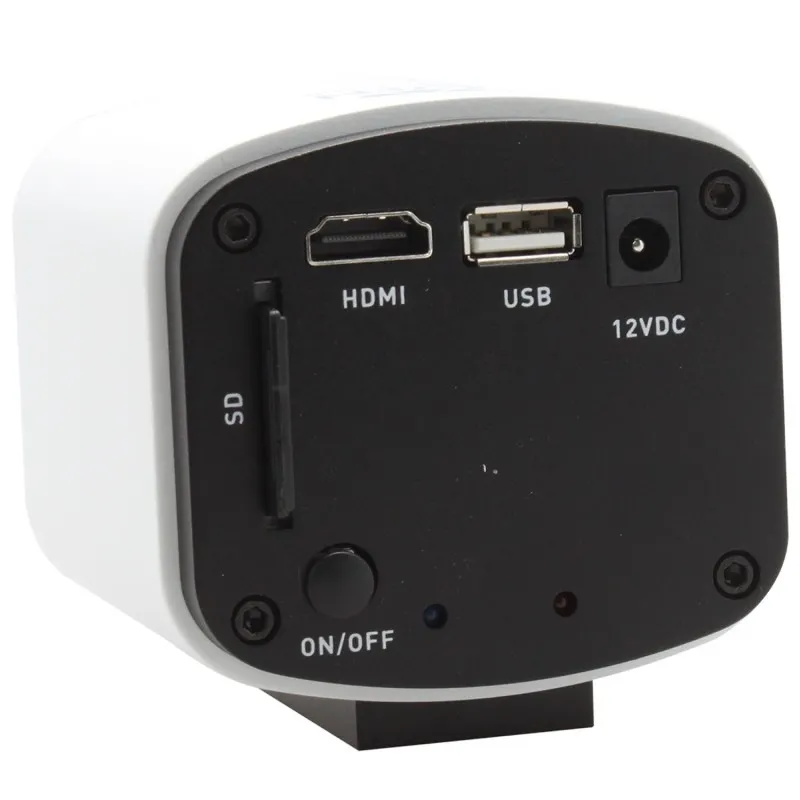

The heart of this system is the Mighty Cam Pro auto focus camera. It offers both USB and HDMI outputs for inspection from an HD monitor or your PC via the included Mosaic software. This camera features auto focus capabilities, achieving an instant clear image with no need to adjust the physical optics. This camera also features a built-in SD card port for capturing instant high resolution images with no need for a PC.

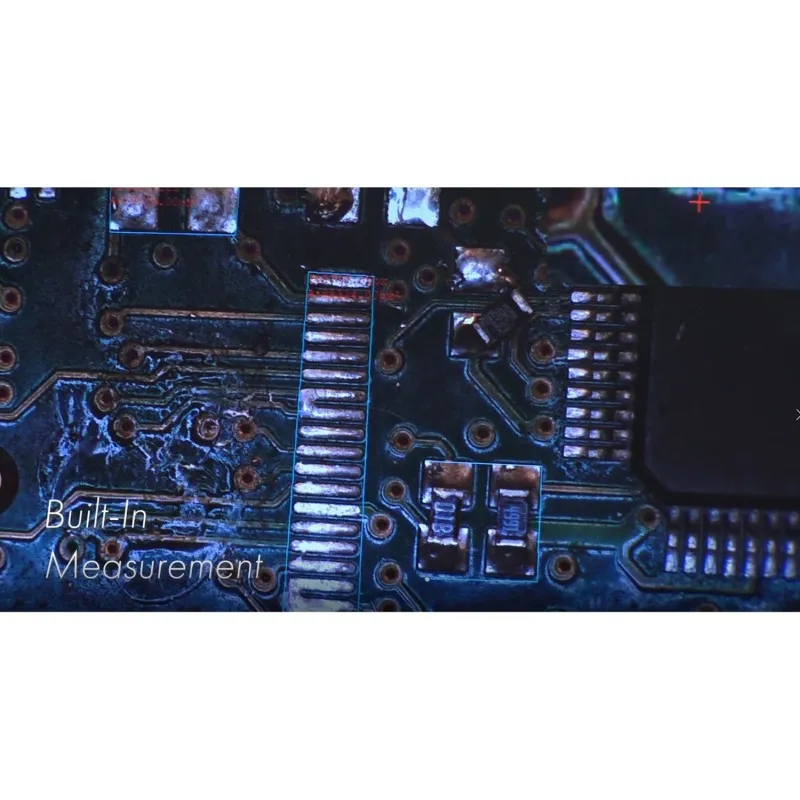

Integrated Measurement System - No PC Required

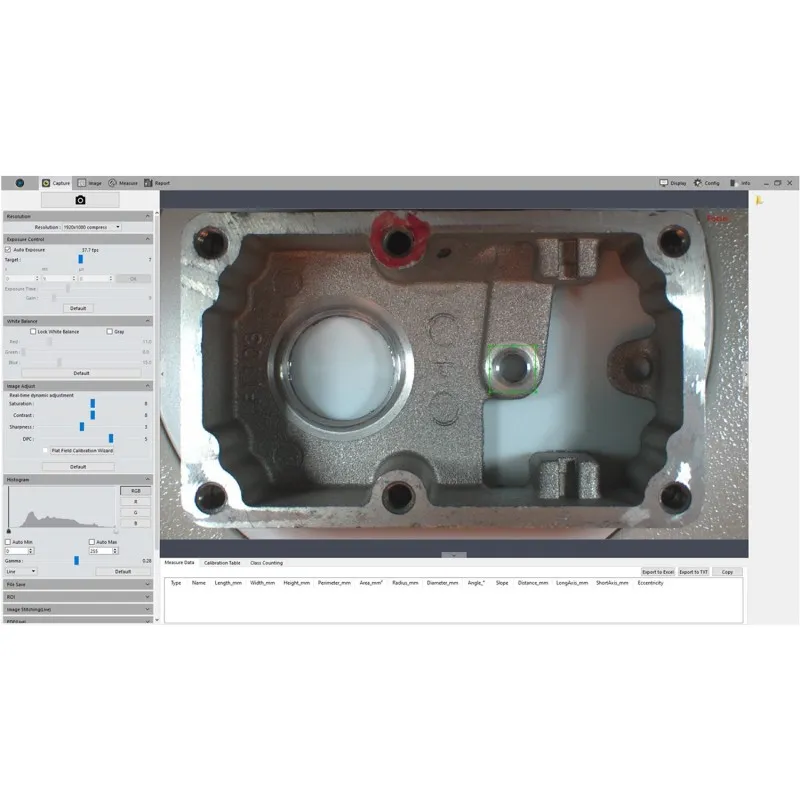

Built in on screen tools provide powerful measurement functions including freehand line, rectangle, polygon, circle, bicircle, angle, point-line distance and much more. Three different length units of millimeter, centimeter and micrometer are provided to meet various measurement requirements in different applications. Simple calibration tool is also included.

Real Time Depth of Field Fusion
The Mighty Cam Pro can change the depth of field without adjusting the optics. Simply click on the part of the image you want to focus on and the camera will bring that sector into focus.

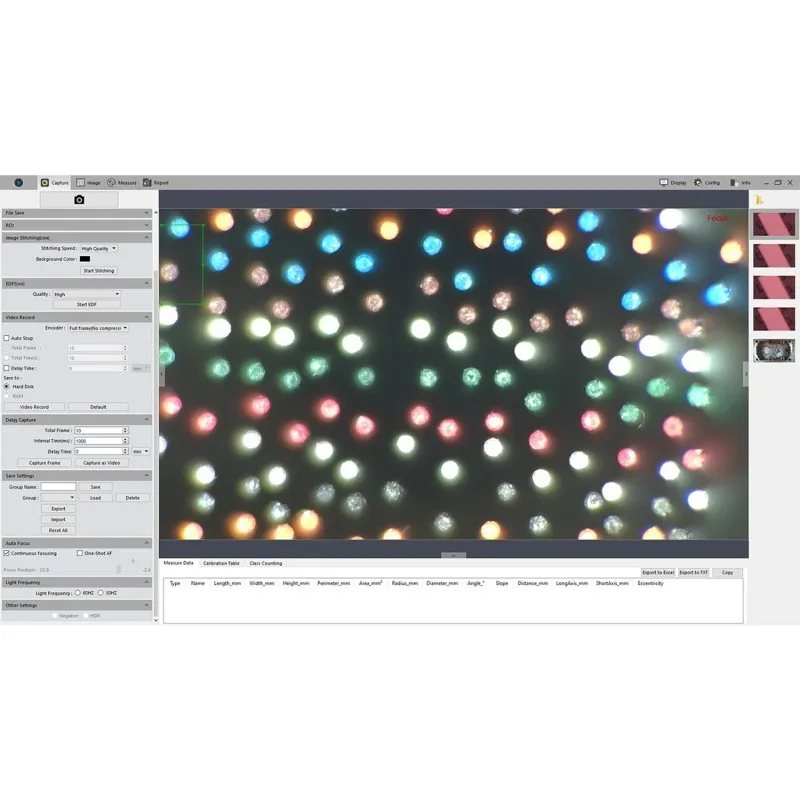

Stitching Feature
Utilizing the Mosaic software package, operators can generate large panoramic images. Simply glide an object under the camera and the advanced software will stitch together images into one larger image.

Precision Engineered Micro Lens
The Micro Lens System produces crisp and clear images that are distortion free and void of chromatic aberration. This lens system comes with detents that allow you to calibrate the lens for measurement repeatability. Total magnification is 0.6x to 4.0x, Field of View is 6 x 8mm at low magnification and 0.8 x 1.2mm at high magnification. The working distance is 82mm.

Heavy Duty Post Stand
The systems comes with a heavy duty post stand. The stand features a large base (279 x 330mm) and a tall 406mm post. It is perfectly designed for viewing a large variety of parts.

LED Ring Light
This compact source of LED lighting with a fully adjustable high resolution dimmer provides uniformity and shadow free illumination. It consists of 96 LED lights that do not heat or flicker.

N-Type Focus Mount
This focus mount secures the camera via 1/4"-20 screw mount, and it features coarse focus adjustment knobs for easy focus adjustment. This focus mount also features a locking screw to fasten at any place along the post stand.
