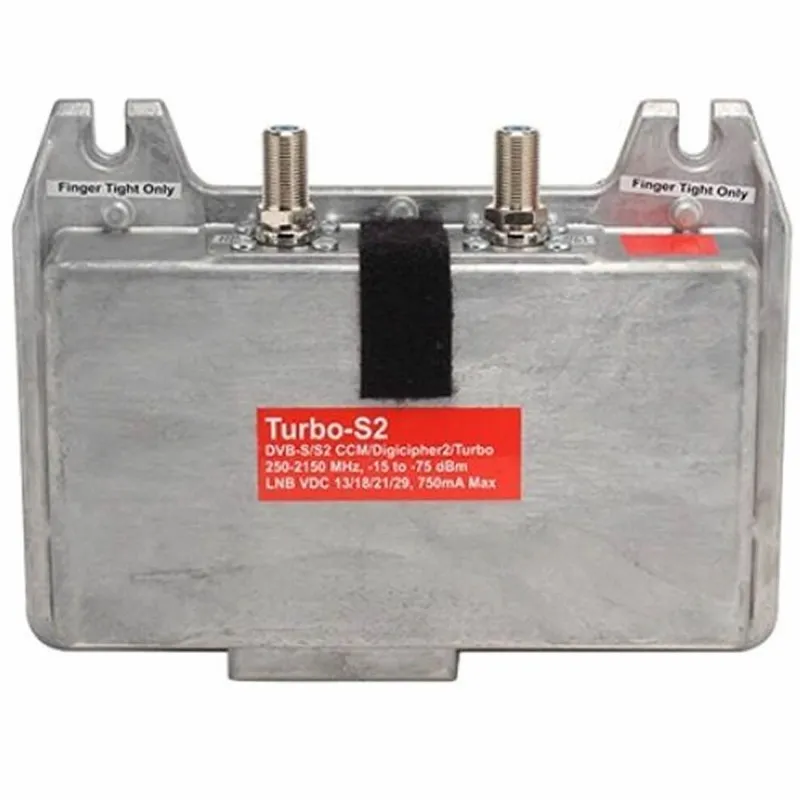

Applied Instruments Turbo S2 [XR-TS2-01] Satellite Signal Level Meter Module For XR-3

Applied Instruments Turbo S2 [XR-TS2-01] Satellite Signal Level Meter Module For XR-3
Applied Instruments Turbo S2 [XR-TS2-01] Satellite Signal Level Meter Module For XR-3
0 reviews • Write a review
from
Rp.17,956,9350
  • Brand: Applied Instruments
  • Part Number: XR-TS2-01
  • Availability: 2 - 4 WEEKS
  • Last Updated: 23 Oct 2022
Applied Instruments Applied Instruments
Add to Cart
Add to Wish List Compare this Product
Tags: Extech , DO700 , Portable Dissolved Oxygen Meter

The XR-3 TS2 module represents a new standard in satellite identification capability. Rather than loading a limited set of satellites or a large number of channel plans to select from, the XR-3 TS2 module holds all of the compatible satellite transponder information for the entire continent.

  • 250-2150 MHz
  • For North American DBS & Broadcast TVRO
  • Tuner Module for use with XR-3 Modular Test Instrument base unit
You just tell it where you are, and what type of system you are connected to, and the XR-3 accesses all compatible satellite transponders visible to that system. The basic operation becomes extremely simple:
  • Left arrow button - goes to next orbit east
  • Right arrow button - goes to next orbit west
  • Up arrow button - next higher transponder
  • Down arrow button - next lower transponder
Measurements
  • Demodulates DVB-S, DSS / DIRECTV Legacy, & DVB-S2 (CCM, ACM, & VCM) signals
  • Signal Level (dBm, dBmV, or dBμV) with present and peak bar graph
  • Signal Quality (IRD, C/N, Eb/No, or Es/No)
  • Pre-FEC & Post-FEC BER (Bit Error Rate)
  • PER (Packet Error Rate)
  • Voltage output of IRD / IDU (29V max)
  • Current draw of LNB
  • LNB frequency deviation (LNB LO drift estimate)
  • Symbol Rate error
  • Spectrum Screen (frequency on x-axis, amplitude on y- axis)
  • Constellation Screen (I and Q demodulator values)
