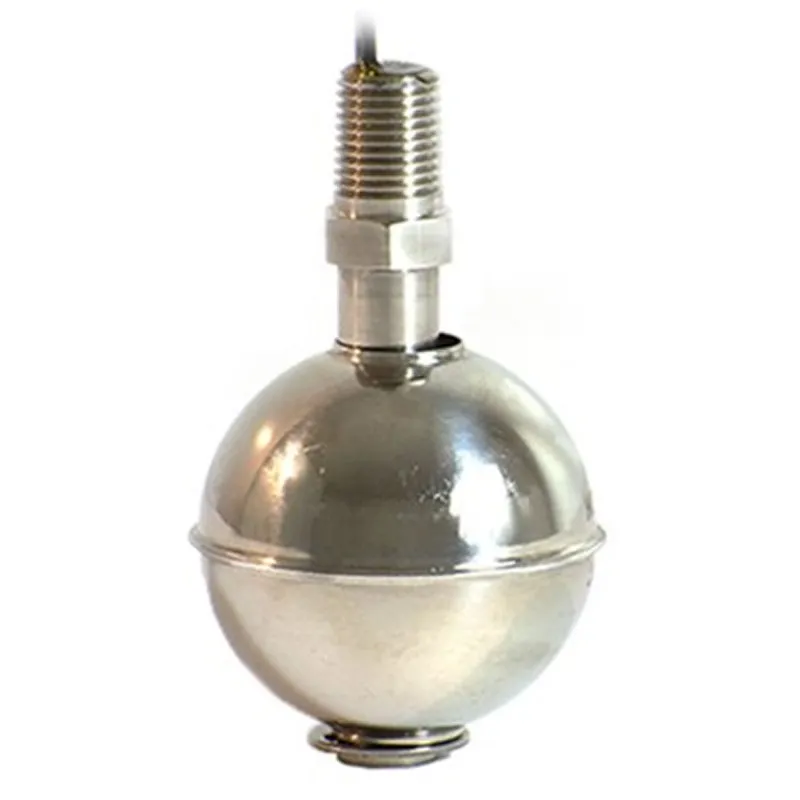

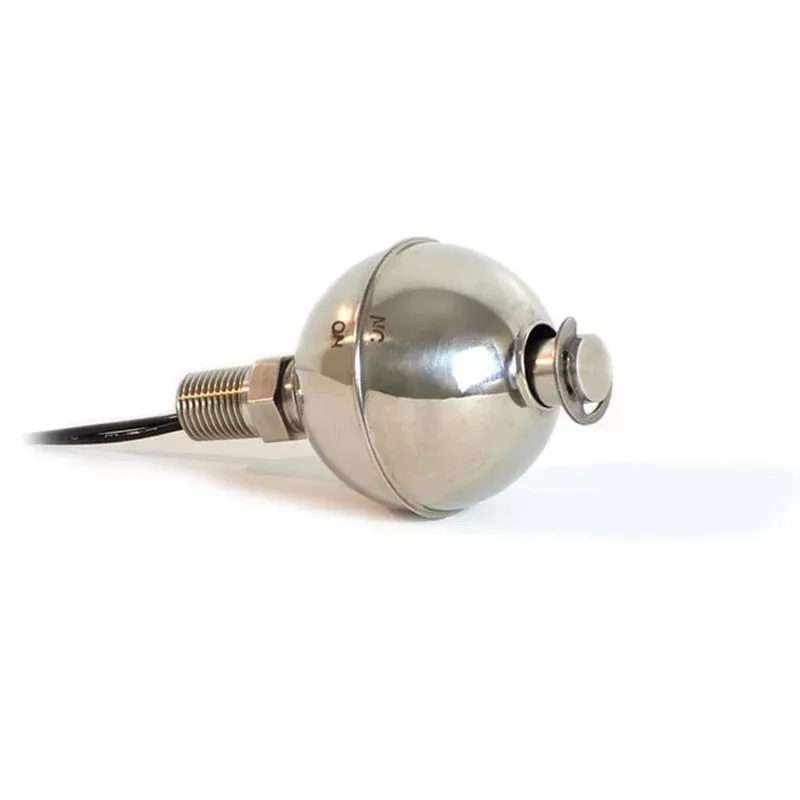

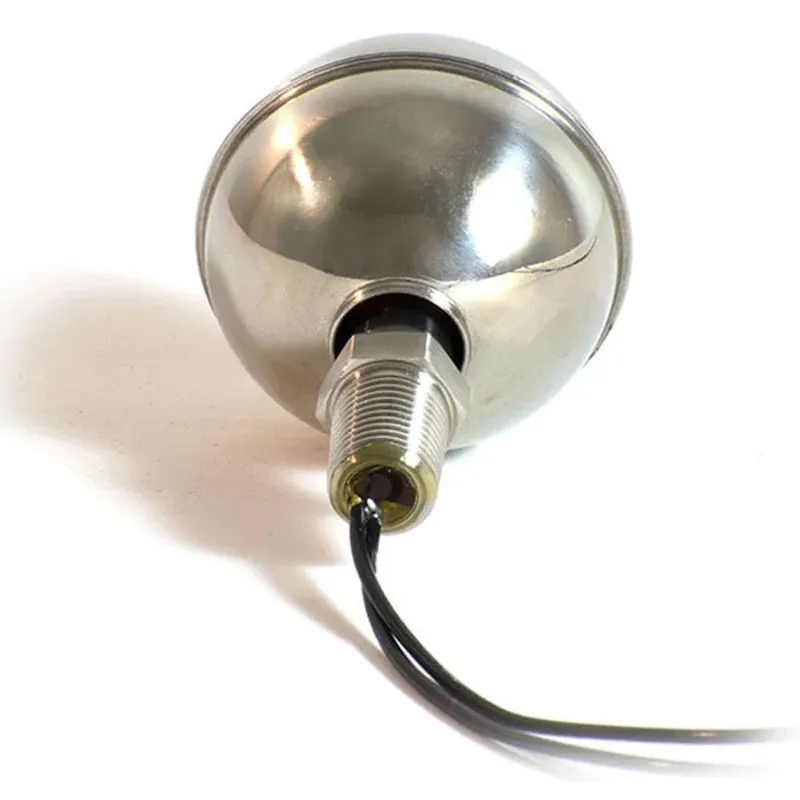

APG FS-400 Vertical Float Switch

APG FS-400 Vertical Float Switch
APG FS-400 Vertical Float Switch
APG FS-400 Vertical Float Switch
APG FS-400 Vertical Float Switch
APG FS-400 Vertical Float Switch
APG FS-400 Vertical Float Switch
APG FS-400 Vertical Float Switch
0 reviews • Write a review
from
Rp.2,862,456
Ex Tax: Rp.2,862,456
APG Automation Products Group APG Automation Products Group
Add to Cart
Add to Wish List Compare this Product
 Configure Options
Tags: APG , Kari , KA , Level , Float , Switch

The APG FS-400 vertical float switch features all stainless steel wetted materials including a 316L stem and float, as well as a 15-7 retainer. The standard temperature range for the FS-400 is -40° to 383°F (-40° to 195°C), which can be optionally upgraded to -40° to 500°F (-40° to 260°C) for higher temperature applications. The standard temperature FS-400 is rated for up to 200 psi (13.8 bar), while the high temperature model is rated for up to 500 psi (34.5 bar).

The switch for the APG FS-400 vertical float switch is rated for 24 and 120 VDC, as well as 120 and 240 VAC. This switch comes standard as normally open (NO), but is user-reversible and can be configured as normally closed (NC). With less than 3.5 inches from the top of the threads to the end of the stem, this APG vertical float switch is an ideal fit for OEM, water and wastewater and chemical applications.

  APG FS OPERATING TEMPERATURE 0 Item Selected
Model
Product Name
Price
Available
Quantity
[S] Standard -40º to 383ºF (-40 to 195°C)
S
Rp.2,862,456
1 Availability
[HT] High temperature -40º to 500ºF (-40 to 260°C)
HT
Rp.3,117,888
1 Availability
  APG FS400 STEAM MATERIAL 0 Item Selected
  APG FS400 FLOAT MATERIAL 0 Item Selected
  APG FS400 FLOAT SPECIFIC GRAVITY 0 Item Selected
  APG FS400 FITTING TYPE 0 Item Selected
  APG FS400 WIRE LENGTH 0 Item Selected
