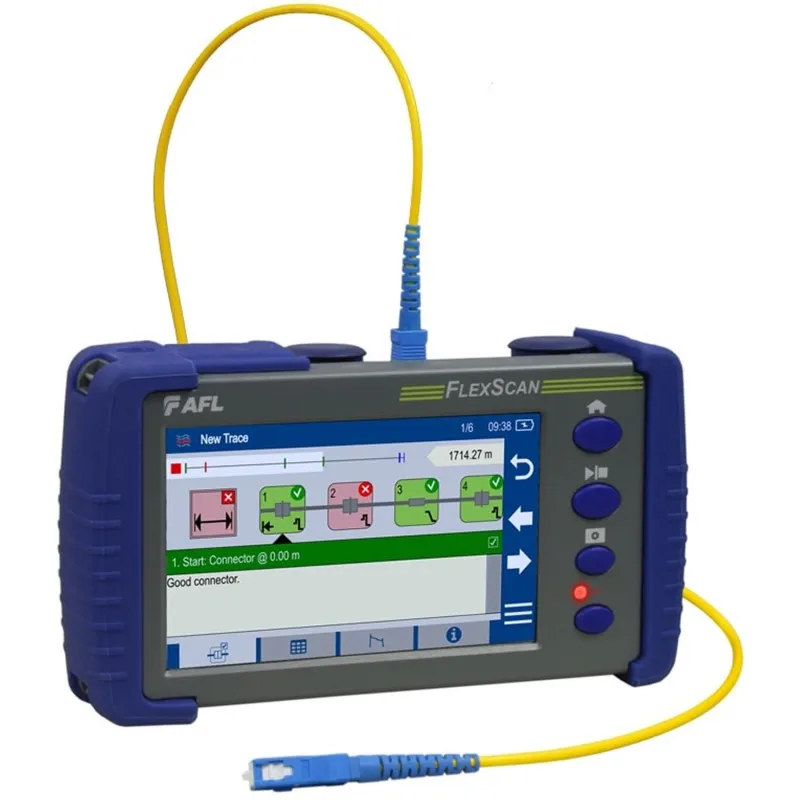

![AFL FS300 [FS300-325] Quad Multimode and Single-mode OTDR](image/cache/wp/gj/Products/AFL_FS300-800x800.webp "AFL FS300 [FS300-325] Quad Multimode and Single-mode OTDR")
The AFL FS300 quad OTDR is a user friendly, pocket sized device, ideal for use in a variety of applications. The FS300 is available in several different packages and hardware configurations, enabling users to purchase an OTDR which is perfect for their specific requirements.
Performance-packed:
With SmartAuto multi-pulse acquisition, 37 dB dynamic range and best-in-class dead zones, FlexScan Quad OTDRs test multimode and single-mode networks - including FTTH PONs and POLANs up to 1:64 split ratio - while still detecting and measuring events <2 meters apart.
User-friendly:
FlexScan OTDRs enable both expert and novice technicians to quickly, reliably and accurately detect, locate, identify and measure optical network components and faults. After applying industry-standard or user-set pass/fail criteria, the network is displayed using FlexScan’s intuitive, icon-based LinkMap view. Results may be printed to PDF and stored internally or externally. FlexScan automates test setup, shortens test time and simplifies results interpretation, improving test efficiency and cost.
Pocket-sized:
FlexScan OTDRs truly fit in your pocket, yet still deliver all-day battery operation plus a large, bright, indoor/outdoor, 5-inch 800x480 touchscreen display. With large touch controls, you’ll never need a stylus.
All-in-one test capability:
With optional connector inspection, optical light source, power meter and VFL, FlexScan provides an all-in one solution, ensuring technicians have everything they need to locate and resolve optical network issues. Uploaded results may be viewed and professional reports may be generated using the included Windows-compatible TRM 3.0 Test Results Manager software.
First, AFL offers five standard kit configurations, starting from basic kits, to packages with a large number of accessories. The following is a brief overview of each:
![[FS300-325-BAS-P0-W1] Quad OTDR Basic Kit, without OLS/OPM, with WiFi/Bluetooth](image/cache/wp/gj/Products/AFL_FS300-100x100.webp)
