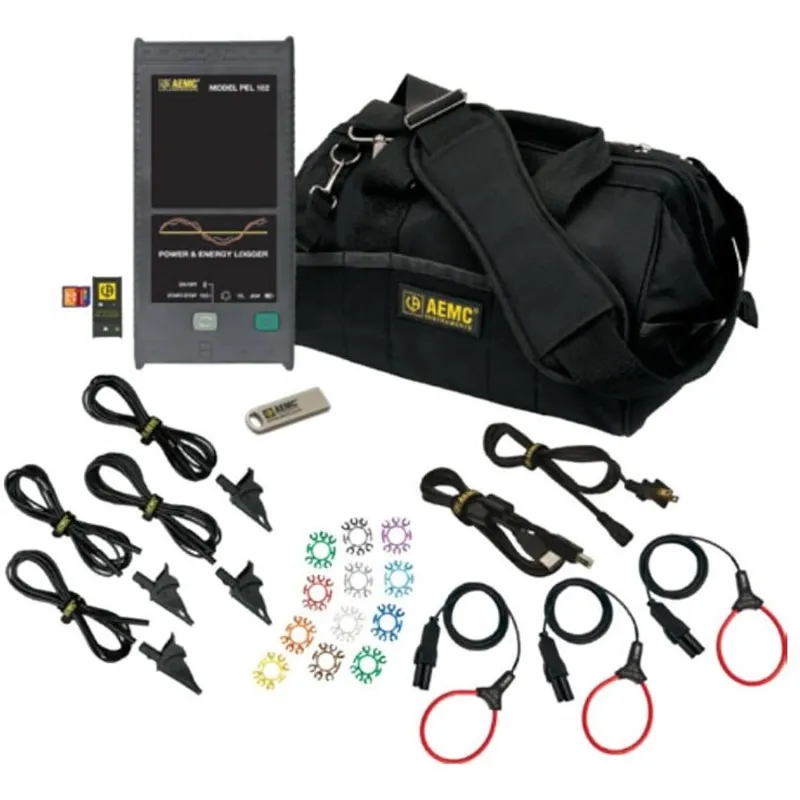

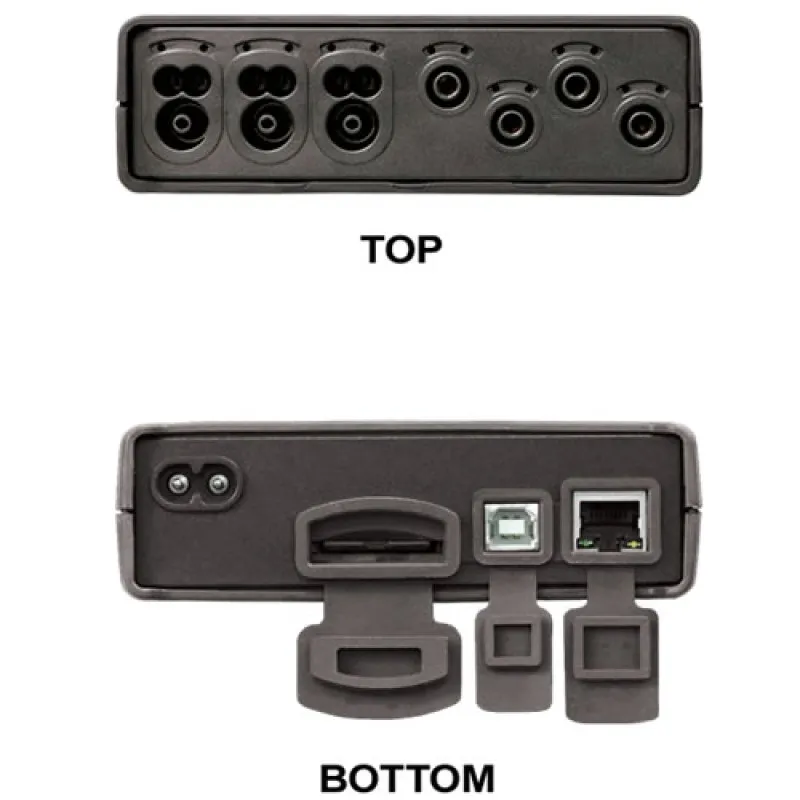

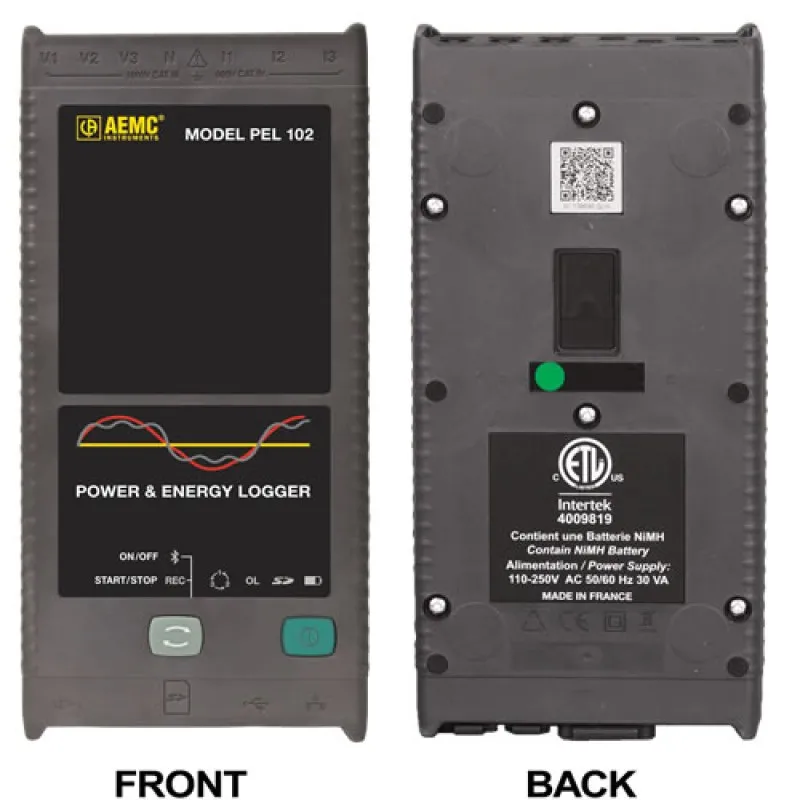

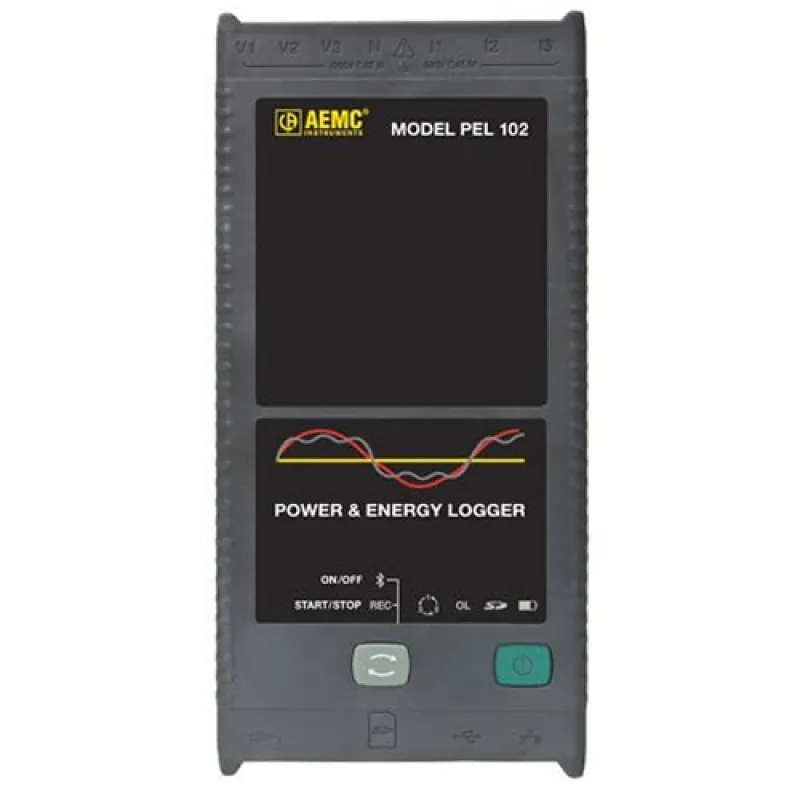

AEMC PEL 102 [2137.51] Single/Three-Phase Power & Energy Logger (no LCD, w/3 MA193-10-BK sensors)

AEMC PEL 102 [2137.51] Single/Three-Phase Power & Energy Logger (no LCD, w/3 MA193-10-BK sensors)
AEMC PEL 102 [2137.51] Single/Three-Phase Power & Energy Logger (no LCD, w/3 MA193-10-BK sensors)
AEMC PEL 102 [2137.51] Single/Three-Phase Power & Energy Logger (no LCD, w/3 MA193-10-BK sensors)
AEMC PEL 102 [2137.51] Single/Three-Phase Power & Energy Logger (no LCD, w/3 MA193-10-BK sensors)
AEMC PEL 102 [2137.51] Single/Three-Phase Power & Energy Logger (no LCD, w/3 MA193-10-BK sensors)
AEMC PEL 102 [2137.51] Single/Three-Phase Power & Energy Logger (no LCD, w/3 MA193-10-BK sensors)
AEMC PEL 102 [2137.51] Single/Three-Phase Power & Energy Logger (no LCD, w/3 MA193-10-BK sensors)
AEMC PEL 102 [2137.51] Single/Three-Phase Power & Energy Logger (no LCD, w/3 MA193-10-BK sensors)
AEMC PEL 102 [2137.51] Single/Three-Phase Power & Energy Logger (no LCD, w/3 MA193-10-BK sensors)
from
Rp.49,103,0650
Ex Tax: Rp.49,103,0650
  • Brand: AEMC
  • Part Number: 2137.51
  • Availability: 4 - 6 WEEKS
  • Last Updated: 15 Sep 2022
AEMC AEMC
Add to Cart
Add to Wish List Compare this Product
Tags: AEMC , PEL 102 , 2137.51 , Single/Three-Phase , Power & Energy Logger

The AEMC PEL 102 [2137.51] is a low cost, simple to use, one, two (split phase) and three phase power/energy data logger. This product is ideal for electricians, engineers and contractors doing work in the area of building and system monitoring and upgrades, as well as residential and overall energy audits. All vital energy data is easily measured, recorded, and analyzed. Reports can be generated with confidence with minimal configuration time and effort (Standard and Customizable Reports supplied).

The PEL102's design enables it to be installed inside a load center panel (including the current sensors) allowing the door to close on most panels. The PEL 102 offers all the essential functions for logging power/energy data from most electrical power networks in use today across the world (17 network set-ups provided). The PEL102 energy logger measures and records three voltage inputs and current inputs, Watts, VARS, VA and Energy (kWh and kVA). Power Factor (PF), Displacement Power Factor (DPF), Crest Factor, Frequency and THD are calculated and recorded as well. Individual harmonic % information from 1 to the 50th harmonic are recorded at the operator's choice. All variables are recorded and stored at a one second interval and on user selectable demand intervals from 1 to 60 minutes.

The included, comprehensive DataView software also provides the ability to view data from several hundred PEL units on a local network or over the internet providing the ability to evaluate energy usage on a department or facility basis anywhere in the world. Real-time data can be reviewed as well as downloading stored results for analysis and report generation.

Configuration of the PEL-102 [2137.51] takes place through the DataView software either locally or remotely. Most of the configured parameters are pre-set in the instrument keeping the user interface simple and straightforward and easy to complete in a few minutes. Current probes are automatically defined and calibrated when they are plugged into the unit. User selections include network type, demand interval, recording length, voltage and current ratios where necessary, recording duration (defined either by time and/or date) and communication method. Pass word protection can be initiated for Bluetooth and network communication to guard against unauthorized access and protection of data integrity.

The DataView software provides the ability to review power, harmonic and RMS data in real time and to download recorded sessions for more extensive analysis and report generation. One second trend and demand interval trend graphs and tabular listings can be displayed and printed out. Energy costs can be calculated. Source and load graphs can be plotted. Individual phase and the sum of all phases can be evaluated. Once on screen, the user has access to a variety of analytical tools to analyze individual data points or sections of the recorded data without the frustration with having to deal with layers of button pushing to get to the information you need.
