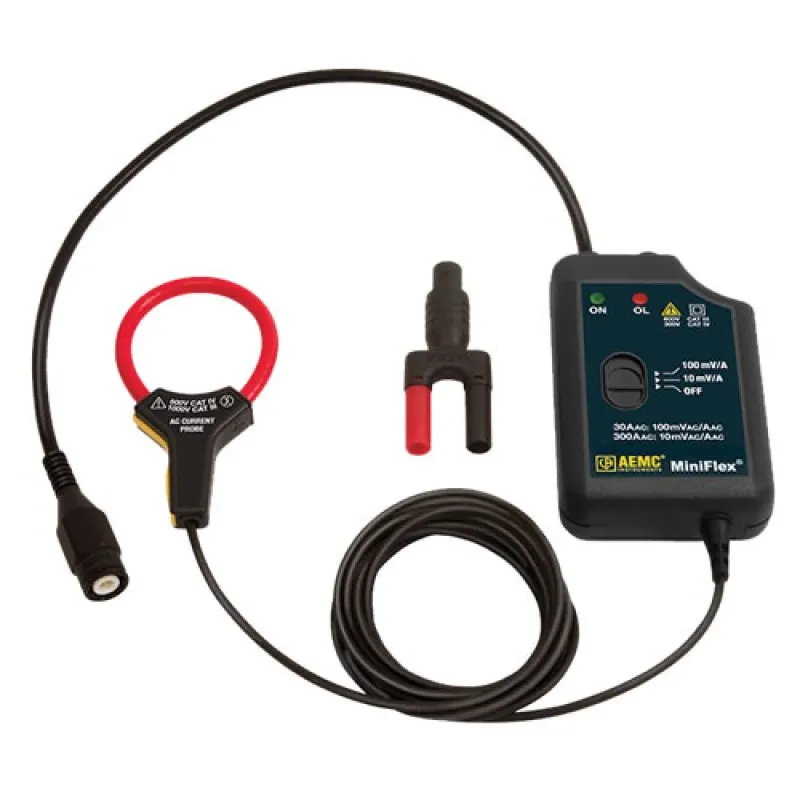

Name: AEMC MF 300-6-2-10 HF [2126.83] 30/300A, 6", 100mV/10mV/A High Frequency AmpFlex & MiniFlex Current Probe
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

AEMC MF 300-6-2-10 HF [2126.83] 30/300A, 6", 100mV/10mV/A High Frequency AmpFlex & MiniFlex Current Probe

from

Rp.19,995,0000

Ex Tax: Rp.19,995,0000

Brand: AEMC
Part Number: 2126.83
Availability: 3 - 4 WEEKS
Last Updated: 28 Jun 2021

AEMC

Qty

Add to Cart

Add to Wish List Compare this Product

Tags: AEMC , MiniFlex , 2140.48 Sensor

Description

The High Frequency MiniFlex® HF is a compact flexible AC current transformer composed of a flexible sensor and an electronic module. The flexible sensor permits measurements on conductors where standard clamp-on probes could not be used. In particular, it can be installed in confined spaces, places where access is difficult, or even wrapped around irregular shapes.

The High Frequency MiniFlex® HF, with a bandwidth frequency from 5Hz to 1MHz, is perfect to connect to any oscilloscope with BNC input to analyze complex-shaped current and transient present in electronic power supplies, welding stations, etc. It presents virtually no load to the system under test and cannot be damaged by overloads. The sensor assembly is insulated for 1000V CAT III; 600V CAT IV. The MiniFlex® meets EN 61010 and is CE marked. It has an mV output proportional to the current measured for direct readings on DMM, data loggers or oscilloscopes,. TRMS measurements are taken when connected to a TRMS meter. The MiniFlex® is insensitive to DC currents and only the AC component of the measured signal is measured.
