Additel ADT 878 [ADT878-160] Reference Dry Well Calibrator, -40°C to 160°C

Name: Additel ADT 878 [ADT878-160] Reference Dry Well Calibrator, -40°C to 160°C
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Additel ADT 878 [ADT878-160] Reference Dry Well Calibrator, -40°C to 160°C

0 reviews • Write a review

from

Rp.371,709,6770

Ex Tax: Rp.371,709,6770

Brand: Additel
Part Number: ADT878-160
Availability: 4 - 6 WEEKS
Last Updated: 07 Mar 2024

Additel

Qty

Add to Cart

Add to Wish List Compare this Product

Configure Options

Description

We are taking temperature calibration to the next level with the Additel 878 ReferenceDry Well Calibrators. If you are looking for the best dry well on the market, then lookno further! Additel’s commitment to continuous improvement, quality and time savingfeatures are on full display in the ADT878 series. With three models to choose from,ranging from -40 to 700°C, you will find the perfect fit for your calibration needs. TheProcess Calibrator option adds an external reference input, a two-channel readout forUUT’s and a full complement of capabilities to help with everything from measuringtemperature sensors, to calibrating thermocouples, self-calibrating the Reference Welland configuring HART transmitters. Each unit comes standard with a large touchscreendisplay, dual-zone control and Additel’s commitment to the best customer service in theindustry. We are certain that you will be blown away by the outstanding performanceof these game-changing Reference Dry Wells!

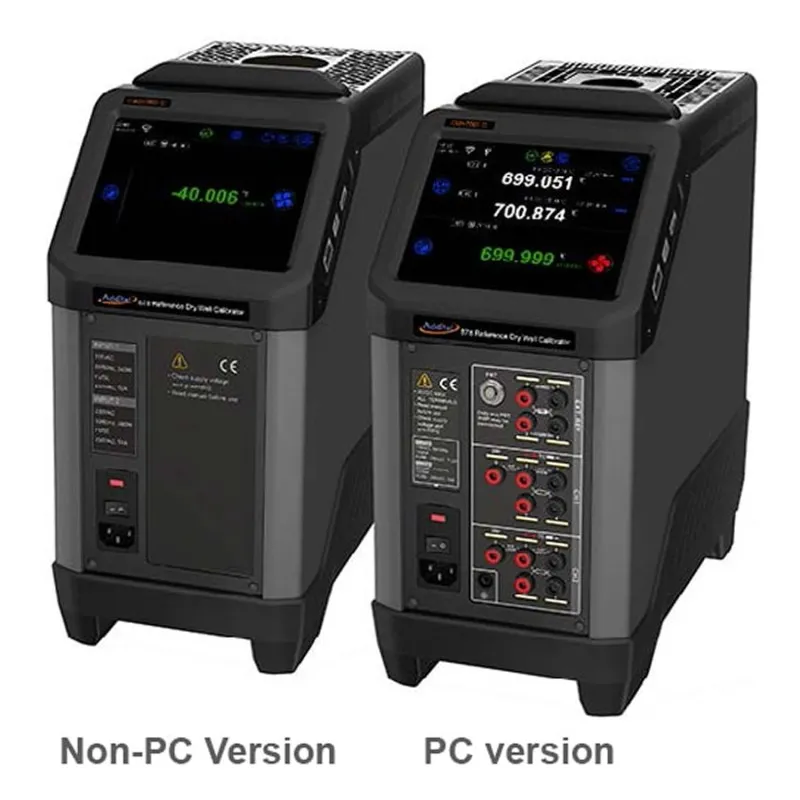

Process Calibrator Option
Each model can be purchased with our Process Calibrator (PC) option. This option combines the many features foundin a fully functional HART documenting process calibrator with the reference grade dry well. This option includes theability to measure a reference PRT, with virtually any connection type, and two device under test channels whichcan measure, mA, voltage, switch, RTD or thermocouple. In addition to these measurement functions, this calibratorhas full documenting capability of creating tasks, saving as found and as left results, as well as communication withHART-smart transmitters. The process calibrator option also has an on board full HART communicator which allowsusers to read, configure and calibrate HART transmitters. The snap shot feature allows you to capture all informationdisplayed on the screen with the push of a button. This optional add-on allows for data logging of all channels on anauto step function. By utilizing the reference PRT, you can select to control to the dry well set point using the internalsensor or the external reference PRT.

Self-Calibration
We believe using an external reference probe as your standard is the best way to perform your temperaturecalibration. But we also recognize this method is not always necessary or convenient and depending on theapplication, using the internal control sensor would be preferred. Traditionally, the internal control sensor has a wideaccuracy which can largely be contributed to its long-term drift. We’ve built-in a self-calibration feature allowing you torun an automated calibration of the internal control sensor using your external reference. With literally a few selectionsthe calibration will run automatically giving you a fresh, traceable calibration of the control sensor which will improveits accuracy as you will not have to account for its long term drift when used as the reference.

Automation Features
Traditionally, dry wells were simply a stable heat source. To enhance the usability of our Reference Dry Wells, we'veadded automation features enabling you to utilize these amazing devices as a highly stable heat source, triple point ofwater maintenance apparatus, and annealing furnace.Combined with the ADT878-TPW-KIT, the ADT878-160 Reference Dry Well can be used to automatically realizeand maintain a triple point of water cell. Traditional methods take time and practice to realize the triple point of water.Additel has now simplified this process with an automatic TPW realization feature. Simply insert the cell and PRT intothe Reference Dry Well and run the procedure. The automation in the firmware will alert when the cell is super cooled.Remove the cell and give it a shake and now you can maintain the triple point in the reference well. This is very usefulto check the drift of your PRT. For more information, please see our ADT878-TPW-KIT data sheet.When you purchase our 700°C Reference Dry Well, you will find our automatic annealing feature used to annealPRTs. We have preconfigured annealing procedures that set the temperature annealing time and cool down rate. Thisfeature, also lets you create your own annealing procedures.
