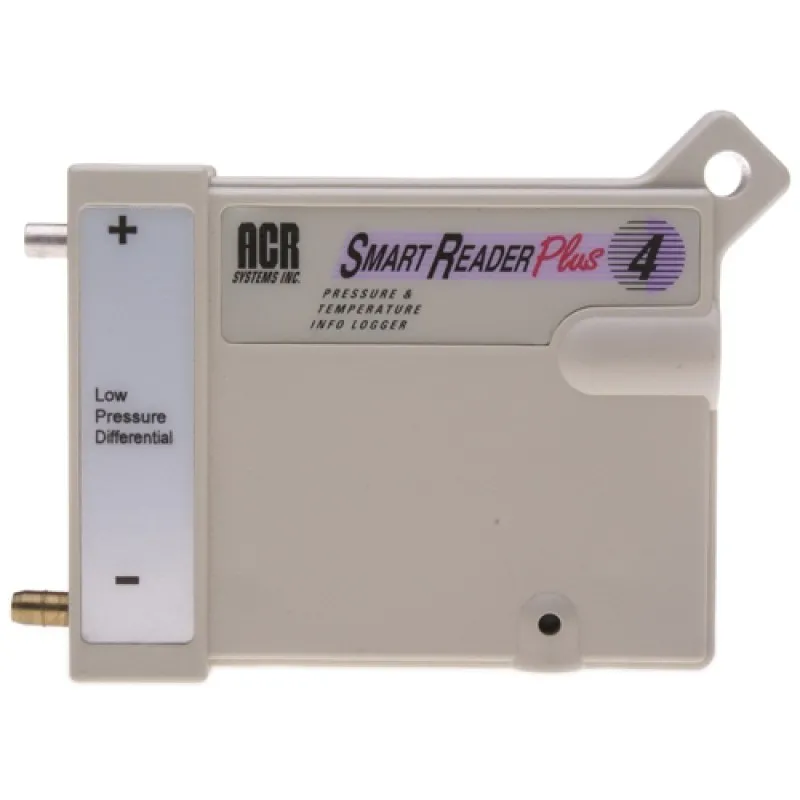

ACR Systems SmartReader Plus 4 LPD Two-Channel Low Pressure Differential and Temperature Data Logger, -40°C to 70°C (-40°F to 158°F)

ACR Systems SmartReader Plus 4 LPD Two-Channel Low Pressure Differential and Temperature Data Logger, -40°C to 70°C (-40°F to 158°F)
ACR Systems SmartReader Plus 4 LPD Two-Channel Low Pressure Differential and Temperature Data Logger, -40°C to 70°C (-40°F to 158°F)
from
Rp.29,053,5480
Ex Tax: Rp.29,053,5480
  • Brand: ACR Systems
  • Part Number: 01-0_5
  • Availability: 4 - 6 WEEKS
  • Last Updated: 24 Nov 2023
ACR Systems ACR Systems
Add to Cart
Add to Wish List Compare this Product
 Configure Options
Tags: Additel , Digital , Pressure , Calibrators

The SmartReader Plus 4 LPD (Low Pressure Differential) data logger is a two channel logger with internal pressure and temperature sensors. The low pressure sensor is built into the logger and is capable of measuring low gauge and differential pressure. APPLICATIONS: Commissioning HVAC systems, monitoring air duct velocity, testing and balancing HVAC systems, monitoring wind speed, verifying positive pressure in critical facilities such as medical and manufacuring, etc.

TrendReader 2 Software
The ACR Systems TrendReader 2 Software is a powerful, versatile and easy-to-use application, designed exclusively for ACR's SmartReader Plus, SmartReader, IAQ, OWL, TRH, JR and Nautilus data loggers. Powerful features and easy setup enables collected data to be thoroughly analyzed in seconds.

Downloading and Communicating with Data Logger

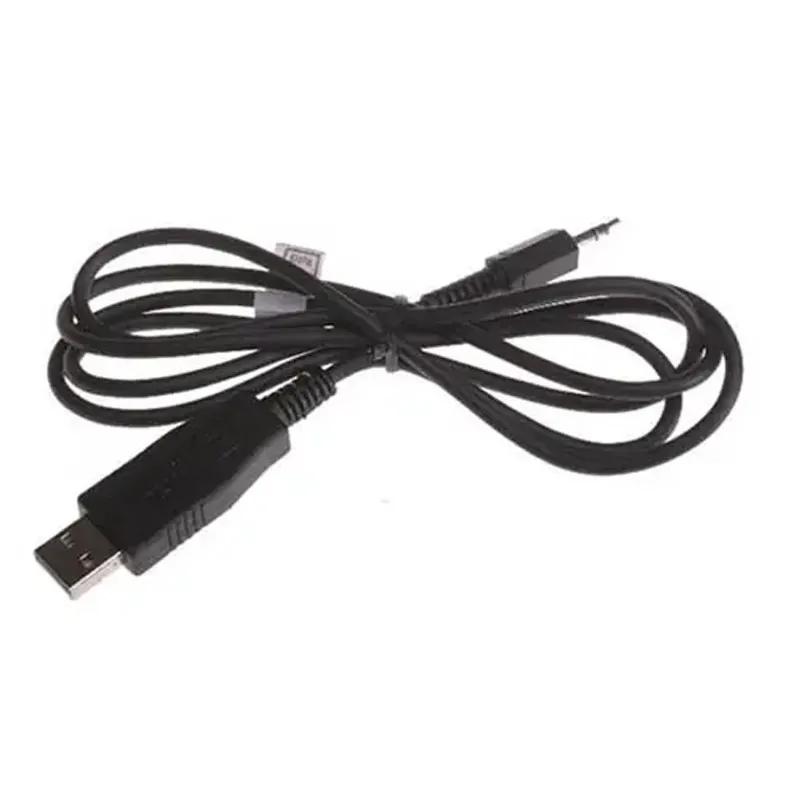

Setup, download and view information from a single data logger with ACR's IC-102 interface cable (included in software interface package). Connection is simple; plug the interface cable into the USB port of your computer and connect the other end to the logger. No tools, cards or docking stations are required.

Data Logger Setup
With built-in menus for sample rate and mode, start delay, equations and more, logger setup is fast and easy. In addition, equations are already included for all ACR sensors so you need only select the appropriate equation from the menu or customize your own. Real-time readings are displayed in the Setup window, allowing you to verify that your data logger is working correctly before placing it in the field.

Viewing Data
With TrendReader 2, data can be viewed in several ways. For presentation purposes, view your collected data in graphical format or for a more detailed analysis, view your data in table format. Either way, multiple channels of data can be displayed at once. Multiple graphs can be displayed together and compounded to create new graphs. For added presentation power, add comments, change graph colors, zoom in on specific portions of data, and display your data using custom engineering units. Print or copy and paste graphs into your reports and presentations. Select all, or portions of the table and copy and paste into your favorite Windows program.

Exporting Data
Use the export function in TrendReader 2 to export your data to other programs for further analysis. Data can be exported in TXT, BMP, PDF, JPG or CSV formats.

  Options 0 Item Selected
Model
Product Name
Price
Available
Quantity
ACR Systems SmartReader Plus 4 LPD [01-0310] Two-Channel Low Pressure Differential and Temperature Data Logger, +/- 0.5 in. Water Column With 32 KB Memory , -40°C to 70°C (-40°F to 158°F)
01-0310
Rp.29,053,5480
4 - 6 WEEKS
ACR Systems SmartReader Plus 4 LPD [01-0311] Two-Channel Low Pressure Differential and Temperature Data Logger, +/- 1 in. Water Column With 32 KB Memory , -40°C to 70°C (-40°F to 158°F)
01-0311
Rp.29,053,5480
4 - 6 WEEKS
ACR Systems SmartReader Plus 4 LPD [01-0312] Two-Channel Low Pressure Differential and Temperature Data Logger, +/- 2 in. Water Column With 32 KB Memory , -40°C to 70°C (-40°F to 158°F)
01-0312
Rp.29,053,5480
4 - 6 WEEKS
ACR Systems SmartReader Plus 4 LPD [01-0313] Two-Channel Low Pressure Differential and Temperature Data Logger, +/- 5 in. Water Column With 32 KB Memory , -40°C to 70°C (-40°F to 158°F)
01-0313
Rp.29,053,5480
4 - 6 WEEKS
ACR Systems SmartReader Plus 4 LPD [01-0314] Two-Channel Low Pressure Differential and Temperature Data Logger,+/- 10 in. Water Column With 32 KB Memory , -40°C to 70°C (-40°F to 158°F)
01-0314
Rp.29,053,5480
4 - 6 WEEKS
