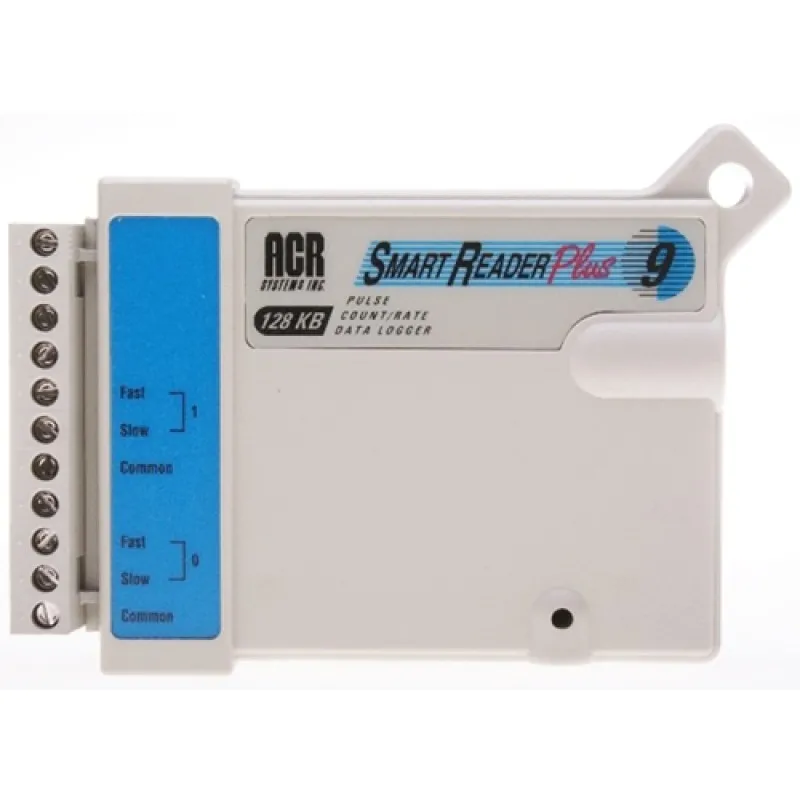

Name: ACR Systems SmartReader Plus 9 [01-0130] Two-Channel Pulse Data Logger with 128 KB Memory
Brand: PT. Indomultimeter Test Instrument
SKU: SRP-009-128K
Availability: OutOfStock
Rating: 5 (1 reviews)

ACR Systems SmartReader Plus 9 [01-0130] Two-Channel Pulse Data Logger with 128 KB Memory

from

Rp.37,271,1290

Ex Tax: Rp.37,271,1290

Brand: ACR Systems
Part Number: 01-0130
Availability: 4 - 6 WEEKS
Last Updated: 25 Nov 2023

ACR Systems

Qty

Add to Cart

Add to Wish List Compare this Product

Tags: Additel , Digital , Pressure , Calibrators

Description

The ACR Systems SmartReader Plus 9 [01-0130] Two-Channel External Pulse Signals/Dry Switch Contact Closure Data Logger with 128 KB Memory is a versatile, designed for easy counting and recording of digital pulses or switch contact closures. It has two pulse/contact input channels. Data can be displayed in custom engineering units using the simple equation editor of ACR's TrendReader 2 software. APPLICATIONS Monitoring fluid and air flow, energy use, wind speed, shaft RPM and rainfall, etc.

TrendReader 2 Software

The ACR Systems TrendReader 2 Software is a powerful, versatile and easy-to-use application, designed exclusively for ACR's SmartReader Plus, SmartReader, IAQ, OWL, TRH, JR and Nautilus data loggers. Powerful features and easy setup enables collected data to be thoroughly analyzed in seconds.

Downloading and Communicating with Data Logger

Setup, download and view information from a single data logger with ACR's IC-102 interface cable (included in software interface package). Connection is simple; plug the interface cable into the USB port of your computer and connect the other end to the logger. No tools, cards or docking stations are required.

Data Logger Setup

With built-in menus for sample rate and mode, start delay, equations and more, logger setup is fast and easy. In addition, equations are already included for all ACR sensors so you need only select the appropriate equation from the menu or customize your own. Real-time readings are displayed in the Setup window, allowing you to verify that your data logger is working correctly before placing it in the field.

Viewing Data

With TrendReader 2, data can be viewed in several ways. For presentation purposes, view your collected data in graphical format or for a more detailed analysis, view your data in table format. Either way, multiple channels of data can be displayed at once. Multiple graphs can be displayed together and compounded to create new graphs. For added presentation power, add comments, change graph colors, zoom in on specific portions of data, and display your data using custom engineering units. Print or copy and paste graphs into your reports and presentations. Select all, or portions of the table and copy and paste into your favorite Windows program.

Exporting Data

Use the export function in TrendReader 2 to export your data to other programs for further analysis. Data can be exported in TXT, BMP, PDF, JPG or CSV formats.
