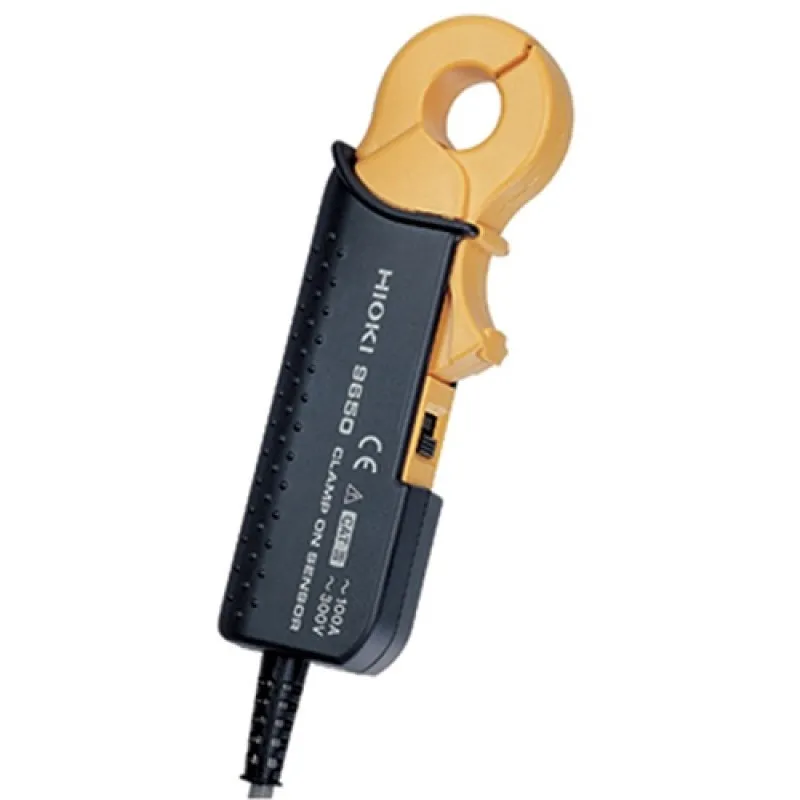

Hioki 9650 100A AC Current Output Clamp On Sensor

Hioki 9650 100A AC Current Output Clamp On Sensor
Hioki 9650 100A AC Current Output Clamp On Sensor
from
Rp.5,450,0000
Ex Tax: Rp.5,450,0000
  • Brand: Hioki
  • Part Number: 9650
  • Availability: 3 - 4 WEEKS
  • Last Updated: 04 Jun 2024
Hioki Hioki
Add to Cart
Add to Wish List Compare this Product
This product has a minimum quantity of 3
Tags: Hioki , 9660 , Clamp-on , Sensor

Clamp on sensor for the micro hicorder 8205-10/8206-10. Sensor is designed with a safety barrier to protect the user from being in direct contact with live conductors. Completely meet all CE marking requirements. Rated input current 100 A AC. Rated output current 100 mA AC. Accuracy (at 50/60 Hz) amplitude: +/-1.5 percent rdg. +/-0.03 Percent f.s. Full scale (f.s.) is the rated input current value. Frequency characteristics 40 Hz to 1 kHz (+/-8 percent or less). Maximum allowable input continuous 130 A rms (45 to 66 Hz). Maximum circuit voltage 300 V AC rms (insulated wire). Core jaw diameter: 37/64". Measures 1-51/64" width by 5-19/64" height by 53/64" depth. Cord length: 9-53/64'.
